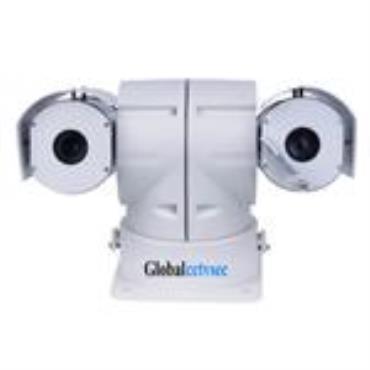

HD Network Laser Infrared High Speed ptz Camera GCS-HDL300

HD Network Laser Infrared Intelligent High Speed ptz Camera

HD Laser infrared PTZ IP Camera GCS-HDL300

Model :GCS-HDL300

With CCD camera module(1.3mega pixels,18x optical, f=4.7~84.6mm),

720P,with laser ,night vision range more than 300metres

The high performance and powerful media, single SOC chip, built-in ( ARM+DSP )and high-speed video agreement processor, extreme CCD perform sensors, used to the standard H. 264 main profile compression algorithms in a thin strip of its high quality image of transport and to support the UPNP function, convenience to the plug-and-play,

Features

Laser infrared night vision range more than 300 meters

All-weather environmental design, high-strength cast aluminum alloy casing, shock, corrosion, protection grade IP66, with the wiper function.

128 or 256 preset positions and with 6 cruising tracks

High-performance video processing chips and H.264 video encoding, high definition images HDTV 720P

Dual-stream output, fully meet the practical application of different network bandwidth environment

Extensive network protocols and good adaptability to adapt to a variety of network environments

Motion detection and alarm linkage, to provide intelligent video surveillance applications

with audio input and output interfaces, enabling two-way voice

Built-in Web Server, Support IE directly through,facilitate management and configuration

18X optical zoom

Specification:

1.3 Mega Pixels HD CCD IP Integrated Laser High Speed PTZ Camera GCS-HDL300

Model No . (With Laser) GCS-HDL300( with Laser,night vision range more than 300metres)

Zoom Camera HITACHI WDR HD Zoom Camera, 1/3 Inch Progressive Scan CCD, 1.3 Mega pixels Effective Pixels

lens 18x optical zoom, f=4.7mm(Wide)~84.6mm(Tele)

Minimum Lux Color 0.5 LuxB/W 0.02 Lux

pan tilt parameters Pan Range:360°continuously ,Tilt range: +90°~-90°;

Pan speed：0.1°-100°/s,Tilt speed :0.1°-60°/s;

128 or 256(Max) Preset positions, 2 scanning tracks;

4 programmable tracks, Each track can set 16 presets.

Video format PAL/NTSC

Video Scanning Progressive scan CCD

Processor Hi3512

Video compression format H.264 Main Profile/MJPEG select

Dual-Streaming Support

Max. Video Resolution The main code stream：1280x720 ; Secondary stream：640x352

Video Frame Rate The main code stream ：1 ~ 25 or 30 frame ( selected ), Secondary stream：1 ~ 25 or 30 frame ( selected )

Video Bitrate 30Kbps～16Mbps

Audio compression format G.726

Audio input 1-input，MIC

Audio output 1-output，line-out

Caption Adder Support the passage name, date, code stream information overlays, overlays position adjustable.

SD Interface Support SDHC standard TF card

TF Card Support video record and images captured SD2. 0, the max capacity to 32G

Alarm input 1-input

Alarmoutput 1-output，120VAC 1A/24VDC 1A

Alarm by E-mail support

FTP protocol support

RTSP protocol support

Mobile phone watching (Optional) Support Windows Mobile、Symbian、iPhone

WiFi Network (Optional) (Mini watt)support 802.11b/g protocol,2.4GHz, Maximum wireless distance of 100 meters

(High-power)support 802.11b/g/nprotocol,2.4GHz, Maximum power 800mw, Maximum wireless distance of 2000 meters(High-gain directional antenna)

Wireless encryption protocol (Optional) Support WEP、WPA、WPA2 encryption protocol

3G Network(Optional) Can Built-in EVDO/WCDMA/TD-SCDMA

Protection IP66

Work Temperature -20℃ ~ +50 ℃

Environment humidity 10 ~ 85%

Power supply AC 24V

Power < 60W
