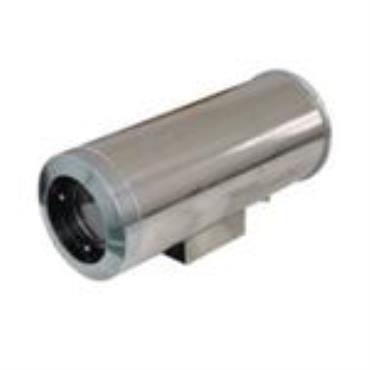

High-temperature proof and Wind-cooled Camera Housing

Model : GCS-EXHC821

Description:

Designed for special environment of high temperature, or a large number of dusts. The camera is fixed on the panel. All the link wires are totally situated in butt plate behind. Cooling compressed air going through the double layers leads to cool down the device. By means of compressed air, the preceding part forms a wind curtain to prevent the dust. It can be very stable in less than 150℃ for a long time.

Feature:

Wind-cooled Camera Housing

All the link wires are totally situated in butt plate behind. Cooling compressed air going through the double layers leads to cool down the device.

Supports fixed-focus or zoom camera and 720P HD camera

Windows is made of steel plate glass

Compressed air to form air curtains to keep the window clean .

Cool way to cool down in cold water .

Manufacturing Materials:

316L stainless steel (marine, oil tankers, chlorine environments)

304 stainless steel (chemical, outdoor, pH environments)

Specifications:

Atmospheric pressure：86 to 106KPa

Atmospheric temperature: 0°Cto +200°C

Dust concentration ≤ 200mg / m3

Size:

Inner size: 280(L) x 70(W) x 70(H)mm

Outside size:330(L) x 134(W) x 155(H)mm

Window: 60mm
