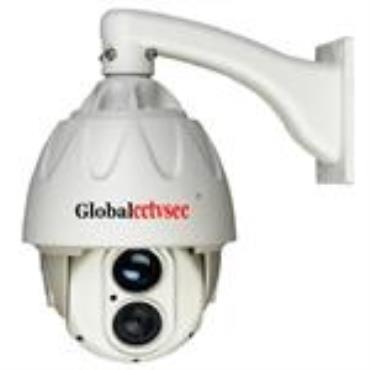

300m Synchronous laser Night Vision High Speed Dome Camera GCS-L5VSeries

w

Speed Dome Laser Night Vision Camera

Synchronous laser IR high speed PTZ camera

Infrared Laser Illuminated Night Vision PTZ Camera Systems

PTZ Integrated Laser Dome Camera

Infrared Laser Night Vision Camera

Laser Cameras (Integrated IR zoom laser illuminator)

Description:

Min. Illumination: 0Lux

first synchronized focusing the light-transmitting system, low-power, low-calorie (ball machine temperature is kept below 50 degrees)

Laser Infrared effective distance up to 300-400meters.

The ball machine works continuously for four hours ( infrared light open and reach thermal equilibrium ) machine temperature not exceeding 50 degrees Celsius.

built-in heat treatment device, reduce the temperature of the ball machine cavity, to prevent the ball in the hood fog .

The constant current circuit design, the infrared attenuation rate of five years is less than 5%,Laser IR light life up to 80,000 hours

Feature:

integrate laser illumination, color block camera into a whole dome camera

Synchronous zoom + super wide angle： 2.8°～65°

Multiple camera program with election (Sony HITAHIC, Samsung, LG)

18X, 22x, 23x, 26x, 27x, 30x, 36x visible CCD camera

Independent developed laser diode; long lifetime up to 30000 hours

0.08°~300°/s high speed

Intelligence function：auto reversal、presetting、cruise、self-checking、record pattern etc. Night vision is 300m.

made of high quality and low power consumption of 0.9 degrees / stepper motor, less heat, large multiples when moving images smooth jitter

Switching power supply, wide voltage input. DC12V or AC16-30V, recommended voltage AC24V

Specification:

Camera specification

Model No. GCS-L5V18S-II GCS-L5V26S GCS-L5V28S GCS-L5V36S GCS-L5V36S-II

Camera SONY FCB-EX490EP SONY FCB-EX980P SONY FCB-EX985EP SONY FCB-EX1010P SONY FCB-EX1020P

Image device 1/4 〞Exview HAD CCD 1/4 〞Exview HAD CCD 1/4" Super HAD CCD 1/4" Exview HAD CCD 1/4" Exview HAD CCD

Wide dynamic range Yes Yes No Yes Yes

Progressive scanning No No No No No

Effective pixels 752(H)X582(V)

Synchronization system internal / external

Video output VBS 1.0Vp-p/75Ω

White balance Auto / Manual / Indoor / Outdoor / Auto-tracking / One click

Scanning frequency 15.625KHz(H) 50Hz(V)

S/N Ratio >50dB

Horizontal resolution 550TVL 480TVL 550TVL 530TVL 550TVL

Electronic shutter 1/1 ～ 1/10,000s 1/1 ～ 1/10,000s 1/1～1/10,000s 1/1～1/10,000s 1/1～1/10,000s

Minimum illumination 0.7Lux 1.0Lux 0.25Lux 1.4Lux 1.4Lux

Focal length f=4.1～73.8mm f＝3.5～91.0mm f＝3.5～98.0mm f＝3.4～122.4mm f＝3.4～122.4mm

Zoom ratio Total 216X Total 312X Total 336X Total 432X Total 432X

Optical 18X Optical 26X Optical 28X Optical 36X Optical 36X

Digital 12X Digital 12X Digital 12X Digital 12X Digital 12X

Focal & Iris Auto / Manual

Mechanical/Electrical

Pan speed 0.08°~300°/s

Tilt speed 0.08°~300°/s

Pan angle 360° Continuously

Tilt angle 0°~+90°

Preset position 220 positions

Preset speed 300°/s

Preset accuracy ± 0.1 °

cruise lines 4 (27 preset/line)

Pattern scan 4

Regaional Indicative 8

Privacy protection 8

LASER illumination Synchronous laser system

Infrared Laser Range 300m

LASER illumination

Zoom Control Auto/Manual

Laser Power Consumption 5W

Laser Voltage of motor DC12V

Laser Lighting Angle 2.8°～65°Synchronised Camera Zoom

Communication Multiprotocol,Baud rate from 2400Bps to 19200Bps for optional, RS485

Performance Day vision distance＞400m ;

Night vision distance＞300m(to people)

Relative humidity 90% without agglomeration

Work Temperature -40°C to +50°C (w/ Housing)

IP Grade IP66

Power consumption 15W when laser infrared lights off,35W when Laser lights turned on

Power input option DC10.5~DC18/AC24V

Power supply AC16~30V , recommend AC24V
