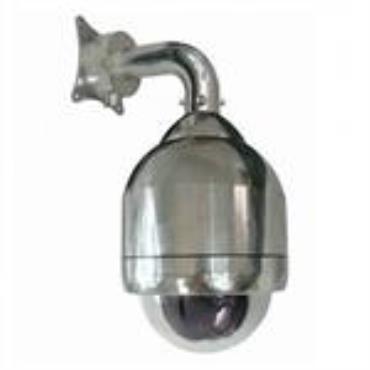

Explosion-Proof IP HD High Speed dome Camera GCS-TB265

Explosion-proof IP HD High-speed Dome Camera

Product: Explosion proof HD High-speed Dome IP Camera

Item #: GCS-TB265 Series

Description:

GCS-TB265 explosion-proof stainless steel explosion-proof high-definition high-speed dome IP camera is a group level and temperature are the highest national standards requirements applicable to any gas (coke oven gas such as hydrogen vinyl acetylene, etc.) explosion-proof applies; this product combines high-definition cameras and explosion-proof products, the advantages of the explosion-proof monitoring equipment function and ease of use greatly improved. The product can be used alone in locations with explosive gas environment, to achieve the purpose of monitoring site.

GCS-TB265 HD network explosion-proof high speed dome camera is a standards-based on H.264 Main Profile / Level 4.1 megapixels network algorithm for 1.3 or 2 million pixels network cameras.it uses a pixel perform scanned images sensors and resolution automatic zoom lens, 720p definition, can achieve the above 720TVL, 1080p definition,resolution of up to 1000TVL broadcast-level image quality.

Support 720p+720p real-time dual-stream code, video files can use the standard decoder decoding and direct. the software used to play.

In the same bit rate has more than doubled the quality MPEG-4 in the same picture quality, the rate is only half of MPEG-4.. Applicable to the high resolution, the need to Auto-focus, the outstanding image colors expression and of the whole frame rate and monitoring functions of video image details.

Feature:

Atmospheric Pressure：80KPa ～ 106KPa

Ambient Temperature: -25℃ ～ +60℃

Relative Humidity: Less than 95%(+25℃)

Ex-proof Marking ExdⅡCT6/DIP A20 TA, T6

Enclosure is 304 or 316Lstainless steel construction

Structural: Integration dome type structure, double-shade design

Manufacturing Materials:

316L Double stainless steel (marine environments chlorine tanker)

304 Double stainless steel (acid-based chemical outdoor environments)

Housing, pan/tilt, decoder integrated.

Support long focal speed limit function.

Support OSD function

Pan / Tilt Range

Pan: 360°Continuously; Tilt: 90°(180° auto-flip )

Pan / Tilt Speed

Pan: 0.1°~ 300°/s (continuous control); Tilt: 0.1°~130°/s

Enclosure protection: IP68

80 presets, and the track which contain maximum 80 presets

Support audio input and output, alarm input and output

Support linked alarm and motion detection alarm

Supports dual-stream encoding, high quality image low bit

Support IE browser

Built-in decoder, integrated multi-protocol, baud rate and multi-brand cameras agreement

Built-in surge and lightning protection devices

Built-in heater and fan
