150m Synchronous zoom Infrared High Speed Dome Camera

150m Synchronous Infrared Night Vision High Speed Dome Camera

Speed Dome IR Night Vision Camera

Synchronous Infrared high speed PTZ camera

Infrared Illuminated Night Vision PTZ Camera Systems

PTZ Integrated IR Dome Camera

Infrared Night Vision Camera

IR Cameras (Integrated IR zoom illuminator)

Feature:

integrate infrared illumination, color block camera into a whole dome camera

Synchronous zoom + super wide angle： 2.8°～65°

Multiple camera program with election (Sony HITAHIC, Samsung, LG)

18X, 22x, 23x, 26x, 27x, 30x, 36x visible CCD camera

Independent developed infrared diode; long lifetime up to 30000 hours

0.08°~300°/s high speed

Intelligence function：auto reversal、presetting、cruise、self-checking、record pattern etc. Night vision is 150m.

made of high quality and low power consumption of 0.9 degrees / stepper motor, less heat, large multiples when moving images smooth jitter

Switching power supply, wide voltage input. DC12V or AC16-30V, recommended voltage AC24V

Specification:

Camera specification

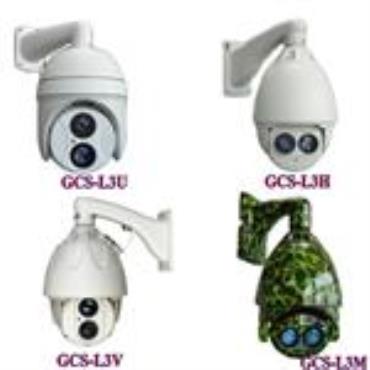

Model No. GCS-L3U18S-II GCS-L3U26S GCS-L3U28S GCS-L3U36S GCS-L3U36S-II

Model No. GCS-L3H18S-II GCS-L3H26S GCS-L3H28S GCS-L3H36S GCS-L3H36S-II

Model No. GCS-L3V18S-II GCS-L3V26S GCS-L3V28S GCS-L3V36S GCS-L3V36S-II

Model No. GCS-L3M18S-II GCS-L3M26S GCS-L3M28S GCS-L3M36S GCS-L3M36S-II

Camera SONY FCB-EX490EP SONY FCB-EX980P SONY FCB-EX985EP SONY FCB-EX1010P SONY FCB-EX1020P

Image device 1/4 〞Exview HAD CCD 1/4 〞Exview HAD CCD 1/4" Super HAD CCD 1/4" Exview HAD CCD 1/4" Exview HAD CCD

Wide dynamic range Yes Yes No Yes Yes

Progressive scanning No No No No No

Effective pixels 752(H)X582(V)

Synchronization system internal / external

Video output VBS 1.0Vp-p/75Ω

White balance Auto / Manual / Indoor / Outdoor / Auto-tracking / One click

Scanning frequency 15.625KHz(H) 50Hz(V)

S/N Ratio >50dB

Horizontal resolution 550TVL 480TVL 550TVL 530TVL 550TVL

Electronic shutter 1/1 ～ 1/10,000s 1/1 ～ 1/10,000s 1/1～1/10,000s 1/1～1/10,000s 1/1～1/10,000s

Minimum illumination 0.7Lux 1.0Lux 0.25Lux 1.4Lux 1.4Lux

Focal length f=4.1～73.8mm f＝3.5～91.0mm f＝3.5～98.0mm f＝3.4～122.4mm f＝3.4～122.4mm

Zoom ratio Total 216X Total 312X Total 336X Total 432X Total 432X

Optical 18X Optical 26X Optical 28X Optical 36X Optical 36X

Digital 12X Digital 12X Digital 12X Digital 12X Digital 12X

Focal & Iris Auto / Manual

Mechanical/Electrical

Pan speed 0.08°~300°/s

Tilt speed 0.08°~300°/s

Pan angle 360° Continuously

Tilt angle 0°~+90°

Preset position 220 positions

Preset speed 300°/s

Preset accuracy ± 0.1 °

cruise lines 4 (27 preset/line)

Pattern scan 4

Regaional Indicative 8

Privacy protection 8

illumination Synchronous Infrared system

Infrared Range 150m

IR illumination

Zoom Control Auto/Manual

IR Power Consumption 3W~4W

IR Voltage of motor DC12V

IR Lighting Angle 2.8°～65°Synchronised Camera Zoom

Communication Multiprotocol,Baud rate from 2400Bps to 19200Bps for optional, RS485

Performance Night vision distance＞150m(to people)

Relative humidity 90% without agglomeration

Work Temperature -40°C to +50°C (w/ Housing)

IP Grade IP66

Power input option DC10.5~DC18/AC24V

Power supply AC16~30V , recommend AC24V
