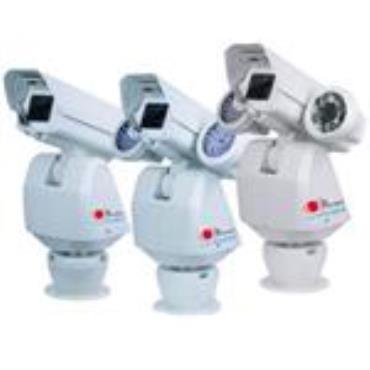

HD IP Integrated PTZ Camera Systems GCS-HDI200

GCS-HDI200 is a mega pixel integrated network camera with powerful capability of 18x optical Zoom, auto-focus, auto-iris and auto white balance. It uses H.264 encoding to make transmission of 30fps real-time 720P picture. GCS-HDI200 adopts 1/3 inch CCD device. this model is able to make color/mono conversion. the minimum illumination is lower to 0.02 Lux. GCS-HDI200 makes all-weather monitoring be available. GCS-HDI200 is able to make continuous 360 °panning and -50 °~+60 °tilt running with 0.1 °/s~60 ° /s .

The high performance and powerful media, single SOC chip, built-in ( ARM+DSP )and high-speed video agreement processor, extreme CCD perform sensors, used to the standard H. 264 main profile compression algorithms in a thin strip of its high quality image of transport and to support the UPNP function, convenience to the plug-and-play,

Built-in web server, use standard IE browser the user with a real look of the prison and set up administrative and support IEEE802. 11a /b /g/n wireless transmission protocols and support remote systems, It can offer low code stream to the high quality image and the overall solution for the airport, the financial industry, video conference, the number of court and the security control sites.

1.3 Megapixel H.264 Positioning System GCS-HDI200

Mega Pixel Positioning System

Features

High-strength aluminum alloy casting, high temperature, corrosion resistant, all-weather environmental design, level to IP66

360 ° Continuous Pan Rotation , Tilt Range of 60 ° ~ -50 ° from Horizontal .

128 or 256 preset positions and with 6 cruising tracks

focal length and operating speed automatic matching, with wiper system

High performance video processing chips and H.264 video encoding, high definition images to 720P

Dual-stream output, fully meet the practical application of different network bandwidth environment

Extensive network protocols and good adaptability to adapt to a variety of network environments

Motion detection and alarm linkage, to provide intelligent video surveillance applications

with audio input and output interfaces, enabling two-way voice

Built-in Web Server, Support IE directly through,facilitate management and configuration

18X optical zoom

Specification:

1.3 Mega Pixels HD CCD IP Integrated High Speed PTZ Camera Systems GCS-HDI200 Series

Model No . GCS-HDI200

Model No . (With common IR ) GCS-HDIR200 (with Infrared ,night vision range more than 100metres)

Model No . (With Osram light) GCS-HDIR200-II ( with Osram light ,night vision range more than 150metres)

Zoom Camera HITACHI WDR HD Zoom Camera, 1/3 Inch Progressive Scan CCD, 1.3 Mega pixels Effective Pixels

lens 18x optical zoom, f=4.7mm(Wide)~84.6mm(Tele)

Minimum Lux Color 0.5 LuxB/W 0.02 Lux

pan tilt parameters Pan Range:360°continuously ,Tilt range: +60°~-50°;

Pan speed：0.1°-80°/s,Tilt speed :0.1°-60°/s;

128 or 256(Max) Preset positions, 2 scanning tracks;

4 programmable tracks, Each track can set 16 presets.

Video format PAL/NTSC

Video Scanning Progressive scan CCD

Processor Hi3512

Video compression format H.264 Main Profile/MJPEG select

Dual-Streaming Support

Max. Video Resolution The main code stream：1280x720 ; Secondary stream：640x352

Video Frame Rate The main code stream ：1 ~ 25 or 30 frame ( selected ), Secondary stream：1 ~ 25 or 30 frame ( selected )

Video Bitrate 30Kbps～16Mbps

Audio compression format G.726

Audio input 1-input，MIC

Audio output 1-output，line-out

Caption Adder Support the passage name, date, code stream information overlays, overlays position adjustable.

SD Interface Support SDHC standard TF card

TF Card Support video record and images captured SD2. 0, the max capacity to 32G

Alarm input 1-input

Alarmoutput 1-output，120VAC 1A/24VDC 1A

Alarm by E-mail support

FTP protocol support

RTSP protocol support

Mobile phone watching (Optional) Support Windows Mobile、Symbian、iPhone

WiFi Network (Optional) (Mini watt)support 802.11b/g protocol,2.4GHz, Maximum wireless distance of 100 meters

(High-power)support 802.11b/g/nprotocol,2.4GHz, Maximum power 800mw, Maximum wireless distance of 2000 meters(High-gain directional antenna)

Wireless encryption protocol (Optional) Support WEP、WPA、WPA2 encryption protocol

3G Network(Optional) Can Built-in EVDO/WCDMA/TD-SCDMA

Protection IP66

Work Temperature -20℃ ~ +50 ℃

Environment humidity 10 ~ 85%

Power supply AC 24V

Power < 60W
