Introduction

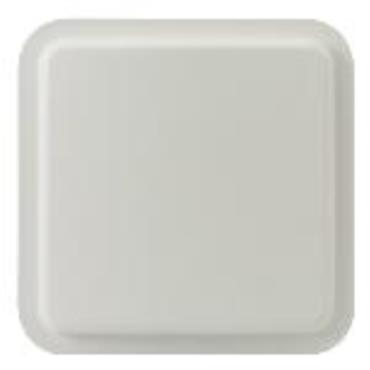

ANT800 is bulit under slim and compact design concepts and as a perfect match for Promag's UHF RFID readers.  Its compact design makes it the best choice for applications where space is limited.  Its customizable frequency and cable length provide you with flexibility for various applications.

Furthermore, the application oriented requirement of Antenna is available on request.  Welcome to discuss to our sales reps.

Features
• Circular polarization
• Slim and compact ID housing for any space installation
• Up to 5 meters reading distance depending on types of tags
• Compatible with different international UHF spectrum (or bandwiths)

Specifications
ANT800-US
• Working frequency: 902-928 MHz
• VSWR:      1.5
• Antenna Gain: 9 dBi +/- 0.5
• Axial Ratio : Under 3 dB
• Dimensions  : 25.6 x 26.6 x 3 cm
• Input impedance: 50ohms
• Cable length:  3M (standard) or customizable (N-Type to SMA)
• RF connector:  N type
• Input power:   10 Watts maximum
• Polarization:  RHCP (standard ) or LHCP
• IP Rating   :  IP66
• Temperature range: Operating:-30 degree C to + 55 degree C,         Storage  :-30 degre C to + 65 degree C
• Humidilty:  10% - 85% Non-condensing
• Safety approval: CE, FCC

ANT800-EU
• Working frequency: 865-869 MHz
• VSWR:1.5
• Antenna Gain: 9 dBi +/- 0.5
• Axial Ratio : Under 3 dB
• Dimensions  : 25.6 x 26.6 x 3 cm
• Input impedance: 50ohms
• Cable length:  3M (standard) or customizable
(N-Type to SMA)
• RF connector:  N type
• Input power:   10 Watts maximum
• Polarization:  RHCP (standard) or LHCP
• IP Rating   :  IP66
• Temperature range: Operating:-30 degree C to +55 degree C,         Storage  :-30 degree C to +65 degree C
• Humidilty: 10% - 85% Non-condensing
• Safety approval: CE, FCC
