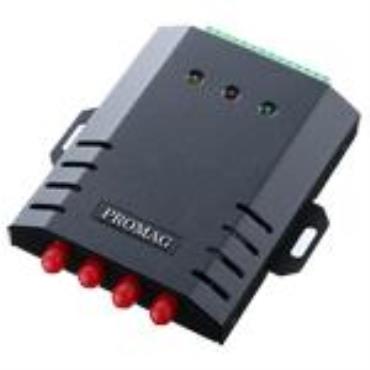

UHF860 is a slickly designed ultra high frequency RFID reader with a reading range of 5 meters. It has ports to connect 4 antennas and it built in compliance with ISO18000-6C EPC Class 1 Gen2 standards. UHF860 has widely varied applications such as Asset management, Academic management,Transportation management, etc. and helps you with convenient, practical and reliable management solutions.

* 4 antenna ports
* Up to 5 meters reading range
* Lightweight
* Industrial I/O
* Multi-regional flexibility
* 3 LED indicators
* Configurable by proprietary software configuration
* Easy to install

Operational Standard
* Connectivity standard: ISO 18000-6C,EPC Class 1 Gen2
* Frequency: 840-960 MHz
* Output Power: Max 27dBm (0.5W)

Sys Spec.
* Interface format:
- RS232: default value at 115200 bps (8,N,1)
  available from 4800 - 115200 bps
- RS485: default value at 115200 bps (8,N,1)
  available from 4800 - 115200 bps
- Wiegand
* Power input: 7.5VDC- 12VDC.standby 600~650mA@7.5VDC
* Minimum current 1A@ 7.5VDC-12VDC
* Reading range: Up to 5 meters(tags and antenna dependent)
* Dimensions: length 114 mm, width 97mm, height 21mm (terminal included)

Physical characteristics
* Weight: 170 grams (terminal included)
* Connectors: SMA for Antenna, 14 pin terminal 3.5mm
* UHF860 with SMA ( female body with female inner pin)
* UHF806US with SMA (female body with male innper pin)

Environmental
* Temperature:
- Operating temp: -10 degree C- 60 degree C
- Storage temp : -20 degree C- 70 degree C
* Humidtity:
- Storage Operating: 10% - 90% non-condensing
- Storage Sotrage : Up to 90% non-consdensing

Note: The Specification is subject to change without notice.

Application
* Supply chain management
* Logistic inventory management
* Cargo tracking management
* Warehouse management
* Shop floor management
* Class management

Available versions
* UHF860 ( Europe type)
* UHF860US ( US type)

The UHF Reader/Writer PCR800 is available to work with UHF860 to read/write the tags.

****** Now SDK is available on request *******
