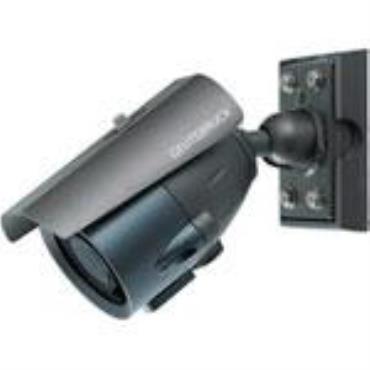

Very high resolution day/night camera in weather-
proof housing with mechanical IR-cut filter
operation, integrated lens, adjustable focal
length, IR LED illumination and wall bracket.
Image sensor (Chip): 1/3" Super HAD CCD II
Picture format: 4:3, Video standard: CCIR/PAL ite)
Video output: Composite video: 1 Vpp, 75 Ohm (BNC)
Scanning system: 2 : 1 interlace
Scanning frequency: 15.625 KHz (H), 50 Hz (V)
Pixel (H x V): 752 (H) x 582 (V) effective
Horizontal resolution: 600 TV-Linien (B/W 650 TVL)
Minimum sensitivity: 0.05 Lux (Color),
0.00 Lux (B/W, IR-LEDs ON)
Day/Night function: Removable IR cut filter
IR-LEDs and sensor: IR-LEDs (850 nm, 66 pcs.)
IR-LED visible range: Max. 50 m
Synchronization: Internal
S/N ratio: 50 dB (AGC off)

* Day/Night camera (TDN) with IR cut filter
* Resolution: 600 TVL(H) Color, 650 TVL(H) B/W
* Digital Noise Reduction (DNR)
* Privacy Masking
* Built in weatherproof housing, IP 66
* Suitable for outdoor and indoor use
* IR illumination of surveillance area
