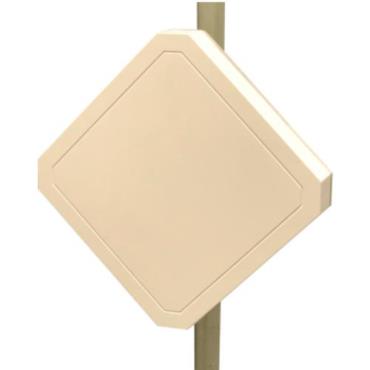

Gemtek 5G NR HE Outdoor CPE
Gemtek Technology
Region: Taiwan
Update: 2019/09/03
Key Specifications
Gemtek LTE Outdoor CPE supports various LTE frequencies and rates, and complies with Ingress Protection Standards as well. It is weather-proof, shock-resistant, water-proof, dust-proof and lightning-proof, combined together to assure the quality of wireless communication under different outdoor environments. The CPE has a built-in high-gain directional antenna to expand LTE signal coverage.


Outdoor installation is simple. The built-in LED indicator light and quick installation setting interface can help the CPE establish the optimal angle to acquire broader signal coverage. The LTE Outdoor CPE integrates with indoor CPE or IAD, and together with software remote control and upgrades, thus may therefore facilitate operators to improve transmission efficiency to deliver long-range wireless broadband services to domestic homes or even business private lines.

  • 3GPP Rel 15 / SA & NSA
  • Qualcomm SDX 55
  • LTE DL Cat 20 / UL Cat 18
  • WW TDD + FDD Bands
  • Frequency combination upon skus
  • 5G NR - Sub 6G
  • 4x4 MIMO / 100MHz BW
  • Up to >2Gbps (Air interface )
  • ENDC
  • TDD : n41, n77, n78, n79
  • FDD : n1, n2, n3, n5, n7, n8, n12, n20, n28, n66
  • Frequency combination upon skus
  • 5G NR – mmWave *Roadmap
  • FR 2 n257/258/260/261
  • Up to >4Gbps (Air interface )
  • 2x2 MIMO / 800MHz BW
  • Frequency combination upon skus
  • 1 x RJ-45 Giga LAN
  • 1 x RJ-45 Multi-Giga LAN
  • Lightening Protection
  • IP67
  • Optional GPS
  • Optional Indoor Router Bundle
