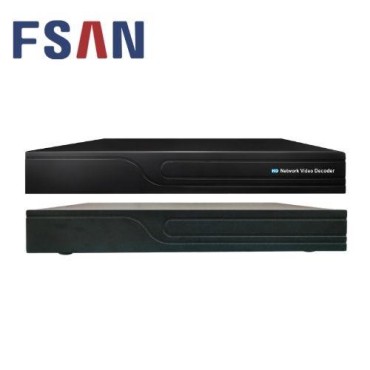

Model：D77-0216MX

FEATURES

-4CH 4K HDMI2.0 splicing decoder

-4CH 4K /9CH 3MP/16CH 1080P HD decoding

-H.265/H.264 decoding, 1U case

-1CH HDMI main output+4CH HDMI splicing output

-Support 2*2 large screen splicing control function

-Support remote playback decoding output

-Support bi-direction talk

-Support active decoding and passive decoding mode

-Support WEB access, configuration and management

-Support multi-channel decoding round touring function

-CMS/VMS remote control decoding channel

-Compatible with platform software to realize easy configuration and management

-Can decode the third party Onvif video stream

SPECIFICATION

SYSTEM

Operation system

Linux

Image display

1/4/9/16 /36/64

Operation application

Network, WEB, VMS/CMS platform software

INTERFACE PARA

Video decoding

H.264/H.265/MJPEG

Decoding ability

"4 CH4K@30fps/9 CH 3MP@30fps/16 CH1080P@30fps

36 CH720P@30fps/64 CH 960H@30fps"

Decoding resolution

4K/1080P/720P/D1

Video frame rate

PAL：1-25fps

NTSC：1-30fps

Bit rate type

Complex stream/ video stream

HDMI output

5CH

Video splicing output

4 splicing function (HDMI interface)

Video output

1 main HDMI sync output

Audio

1 CH RCA interface

Output resolution

3840×2160/1920×1080/1024*768/1280*960 adjustable

Splicing control function

Support 2*2 large screen splicing control function

Communication interface

1 RJ45 100M/ 100M/ 1000M adaptive Ethernet
