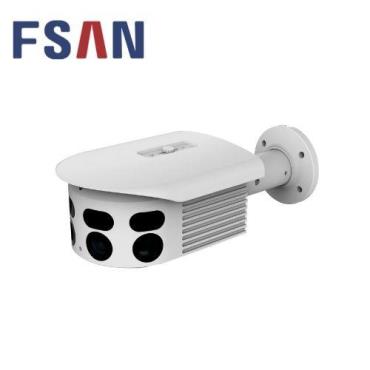

Product Description

-Max resolution 8192X3840

-Support low bit rate,low delay,ROI enhance encoding

-H.265 high effective compression,save bandwidth and storage space

-ICR infrared filter automatic switch,to achieve real day and night monitoring

-Panoramic stitching of 180°,increases the monitoring area under broad environment

-Independent image correction algorithm to optimize the seam

-Support Micro SD card(128G) local storage,3D digital N/R,white balance adjustable and auto electronic shutter function,adapt different monitoring environment

-Support bidirectional talk,2ch alarm input/1ch alarm output

-Support Onvif,GB28181(optional),Email,FTP,NTP and HTTPS encryption transmission

-Original equipment boot to modify password,ensure password security

-Support lightning thunder proof,surge proof,static proof

Product Parameters

CAMERA

1.Image sensor

4*1/1.8"SONY 8MP Progressive scan Exmor CMOS

2.Min.illumination

Color:0.01Lux/F1.4,

B/W:0.05Lux/F1.4

3.IR distance

4*IR Lamp array,TBD

4.Day/Night

ICR switch,auto,color,B/W,ext

5.Lens:4.27mm

6.S/N ratio:≥50db(AGC OFF)

7.WDR

WDR Off/Low/Middle/High

8.Light board control

Auto/Manual/Off

9.3D N/R

Off/Low/Middle/High/Higher

10.Mirror

Off/Horizontal/Vertical/180º rotation

11.Image setting

Brightness,Contrast,Saturation,Sharpness,chroma

AUDIO/VIDEO ENCODING

1.Video compression:H.265/H.264

2.Encoding features

NTSC

main stream:8192×3840@30fps,

sub-stream:720P/D1@30fps,

third stream:1920x1080

PAL

main stream:8192×3840@25fps,

sub-stream:720P/D1@25fps,

third stream:1920x1080

3.Max.Resolution:8192x3840

4.Video bit rate

Constant bit rate,variable bit rate(16kbps~8000kbps)

5.Video type

Complex stream/Video stream

6.Audio compression

G.711u/64Kbps

7.ROI

Support 8 zones,level 6 can be set

NETWORK

1.Network protocol

Support TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,UPnP,SMTP,FTP

2.Access protocol

ONVIF,GB28181(optional)

3.Safe mode

Authorized user name and password,HTTPS encryption and AES link encryption,RTSP verification

4.Motion detection

Set detection zone,Multi-level sensitivity can be set

5.Tampering alarm

1 zone

6.Privacy Mask

4 zones

7.Event linkage

Snapshot,TF card video,FTP upload or Email sending,alarm output linkage,preset linkage

8.ANR

Support,match with NVR

9.Mobile surveillance

Support Apple,Android

10.Device exception detection

Support network disconnected,IP conflict,illegal access alarm

11.OSD

Title,time and date overlay,multi-line OSD,OSD color optional

12.System update

Support remote update
