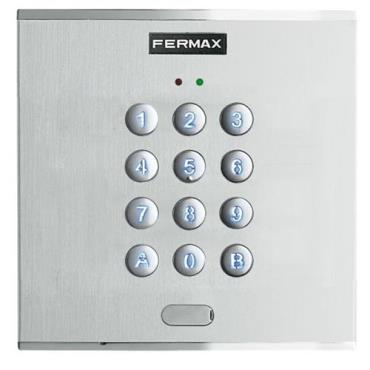

Memokey is the Access Control Reader by numerical code.

Access Control keypad that lets you open the door when a previously programmed 6 digit code is entered. CityLine is the "continuous profile" outdoor panel line. This new panel model is more robust, more luxurious and higher design and functional quality.

Stand-alone Access Control System. For installations where a simple access control is required, with no incidents record, to complement the audio/video door entry system and enable access to the building for residents, for example: offices, small businesses, garages.

TECHNICAL SPECIFICATIONS

Series 1 Panel.

- Panel measurements: 130x128 mm (width-height)

- Flush-fit box dimensions:: 115x114x45 mm (height-width-depth)

- Surface mounted box dimensions:: 130x128x33 mm (height-width-depth)

- Standalone Power supply: 12 Vac/Vdc

- Up to 100 user codes

- Code length 4 to 6 digits.

- Electric lock release activation by Relay2 A (NA,NC). Programmable 1 to 99 sec. or bistable.

- Exit button input.

- Free access button (trades) input.

- Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or door

open/forced.

- Confirmation by keypad pulsation tone and acceptance or rejection of the code entered.

- Programming from the keypad by master code.

- Power supply 12 Vac / 12 Vdc

- Consumption: 6 mA (standby), 60 mA (active).

- Protection IPK 536

Weight: 0,702101 kg
