Quick Details

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

Fentry

Model Number:

FY610

Product name:

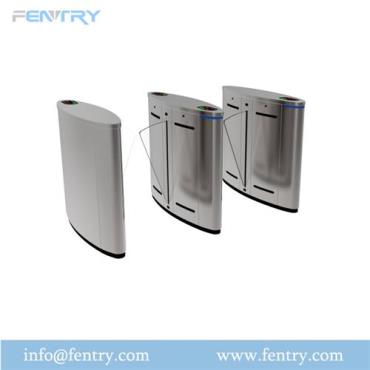

Weatherproof High Security Glass Sliding Turnstile with Card Reader

Framework Material:

304 Stainless Steel

Dimension:

1200 * 340 * 990mm

Passage Width:

550mm (One passage)

Passing Direction:

Single directional / Bi-directional

Flow Rate:

35-40 people per minute

Power supply:

AC220V/110V, 50/60Hz

Operation Voltage:

24V DC

Power Consumption:

40W

Net Weight:

80kg

Supply Ability

Supply Ability:

500 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

Commodity:Fentry Weatherproof High Security Glass Sliding Turnstile with Card Reader

Package Type: Export Wooden Box

Product Dimension: L1200 * W340 * H990 mm

Packing Dimension: L1310 * W450 * H1170 mm

Unit Weight: 80kg

Gross Weight: 100kg

CBM: 0.7CBM/pcs

Port

Yantian, Shekou

Product Description

Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.

The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.

It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.

-

The whole system runs smoothly, long-life performance, high operation dependability and fast response.

Alarm function, in case of illegal intrusion and reverse intrusion.

Infrared sensor to prevent pinch pedestrians.

Anti-breakthrough function. The gate is locked automatically until opening signal received.

Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.

LED indicator.

Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

When power off, optical turnstile will open automatically, which is complying with fire safety requirements.

Specifications

Model No. DS610

Framework Material 304 Stainless Steel

Dimension 1200 * 340 * 990mm

Net Weight 80kg

Passage Width 550mm (One passage)

Passing Direction Single directional / Bi-directional

Power Supply AC220V/110V, 50/60Hz

Operation Voltage 24V DC

Power Consumption 40W

Operation Temperature -15 °C – 60 °C

Operation Humidity 0 ~ 95% (No freeze)

Working Environment Indoor / Outdoor (Shelter)

Flow Rate 40-45 people per minute

LED Indicator Yes

Input Dry contact

Emergency Automatic arm open when power off

Communication RS485, TCP/IP
