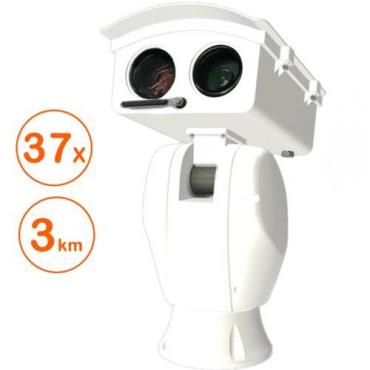

* 1/1.8" Progressive Scan CMOS

* 37x optical zoom,16x digital zoom.

* Up to 1920×1080 resolution.

* 265+/H.264 video compression.

* ONVIF compatible

* Die-Casting housing, IP66 (NEMA 4)

* Optional IR LED/ IR LASER

* Optional Lighting direction remote adjustment structure (Patent pending).

* Optional wiper

* Optional water tank

Application

Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.

PTZ3710

PTZ3715

PTZ3720

comments

1000m IR lighting

1500m IR lighting

2000m IR lighting

Camera & Lens

Sensor

1/1.8" Progressive Scan CMOS

Low light

Color：0.0005Lux @ (F1.4，AGC ON) B/W：0.0001Lux @ (F1.4，AGC ON)

S/N Ratio

> 50dB

Focal Length

6.5 – 240mm

Iris

F1.5-F4.8

Horizontal View Angle

70° ~ 2.51°

Day and Night

Mechanical ICR: Auto, Color, Black and White

Shutter speed

1/25s ~ 1/100,000s；Digital Slow shutter;

Exposure mode

Auto, Manual, Iris Prior, Shutter Prior

Privacy Mask

8 zones, could be set to different color

On Screen Overlay

128 x 128 24 bits BMP files, at any location

Digital De-fog

Support

Digital Image stabilize

Support

3DNR

Support

WDR

support, up to 120dB

Multiple Video Stream

Up to 3 video streaming for different resolutions

Max Main streaming

50Hz: 1920 × 1080 @ 50fps

60Hz: 1920 × 1080 @ 60fps

ROI streaming

Up to 3 video streaming for different ROIs

Storage

Micro SD up to 128GB

Smart Analysis

Face detection, Over boundary detection, Intrusion detection, Fast movement detection, Parking detection etc.

IP protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP

ONVIF

Support

Audio & Video compression

Video compression

H.265 / H.264 / MJPEG

Video Format

50Hz:25fps (1920×1080,1280×960,1280×720);

60Hz:30fps (1920×1080,1280×960,1280×720);

H.265

Main Profile

H.264

Base Line Profile / Main Profile / High Profile

Video bitrate

32 Kbps~16Mbps

Audio compression

G.711a/G.711u/G.722.1/G.726/MP2L2/AAC

Audio bitrate

64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)/16-64Kbps (AAC)

PTZ

Movement Range (Pan)

360° endless

Pan Speed

Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s

Movement Range (Tilt)

From -90° to 45°

Tilt Speed

Configurable, from 0.1°/s to 50°/s, Preset Speed: 50°/s

Presets

up to 255 presets

Patrols

8 patrols, up to 32 presets for each patrol

Patterns

8 patterns, over 10 minutes for each pattern

Auto Scans

4 records

General

Ethernet

10/100Base-T, RJ45 Connector

RS-485

Support, PELCO-P / D Self-Adaption

CVBS

BNC connector, NTSC/PAL composite, 1.0V[p-p] @75Ω

audio

3.5mm connector, Line In/out

Alarm

1 alarm in / 1 alarm out

Power Supply

AC24V +/- 10%

Temperature

-40°C to 60°C (-40°F to 140°F)

Humidity

≤ 90%

Waterproof

IP66, NEMA 4;

Lightening Protection

Up to 6KV

Dimensions

L355mm × W204mm × H443mm

Weight

12 kg

long range infrared camera Power supply:

Power supply

100-240Vdc

Pumper Control

Contact Close

Water low alarming

Contact Close

Maximum water flow

14L/min

Capacity

5L/10L

Water lift

5M

Pipe length

5M / On demand

Lifetime

2000 Hours Continuously running

Power consumption

≤15w

Size

L285 * W193 * H246mm

Weight

2kg(5L) / 4kg(10L)

Rating

IP66
