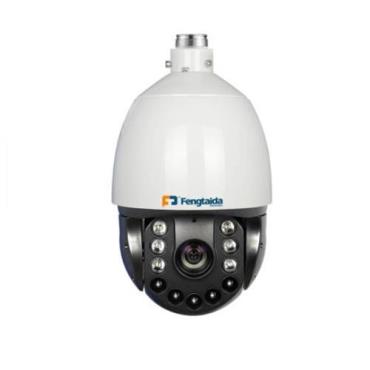

The IRS Series PTZ dome camera features 1080p Full HD with SONY 1/2.8" CMOS and a 20x zoom option. Long range Up to 200m night vision. Let you see further and clearer day and night. PoE and wifi support, auto-tracking. Especially the dome camera housing can withstand extreme environments from -45˚C ~ +70˚C. Built-in SD memory supports up to 125GB and 2 megapixels for approximately 30 days of storage. IP66 for outdoor waterproofing and Onvif support.

Find more detail from https://www.fengtaida.com/products/irs-ptz-camera

Product parameter

Camera

Image Sensor SONY 1/2.8” CMOS

Pixel 2MP

Max. Resolution 1920 (H) x 1080 (V)

Electronic Shutter Speed 1/5~1/50000s

Scanning System Progressive

Min. Illumination Color: 0.002Lux@F1.2

B/W: 0.0004Lux@F1.2

Illumination Distance 200 m

Illuminator On/Off Control Auto/Manual

Illuminator Number 11

Lens

Focal Length f=4.7 ~ 94mm

Max. Aperture F1.6 ~ F3.5

Field of View 58.3°~ 3.2°

Optical Zoom 20x

Focus Control Auto//Manual

Close Focus Distance 100mm ~ 1500mm

Iris Control Auto/Manual

PTZ

Pan/Tilt Range Pan : 360°(Endless)/ Tilt: -10~90°

Preset Max.:131°/sec

Pan/Tilt Speed Manual : 0.1° ~ 131°/sec (Zoom Proportional)

Patrol : 1.4°~131° /sec

Presets 247Presets and 8 presets for special function

Tour 8 (up to 32 presets per tour)

Speed Adjustment Support

Pelco-P/D (auto recognition)

Video

Resolution 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)

Frame Rate 1080P (25/30 fps); 720P (25/30/50/60 fps)

Video Compression H.265;H.264;MJPEG

Day/Night Support

WDR 120 dB

White Balance Auto/Indoor/Outdoor/Tracking/Manual

Noise Reduction 2D/3D

Defog Electronic

Digital Zoom 16x

Audio

Compression G.711

Port

Analog Output 1 (CVBS/CVI output, BNC port)

Audio Input 1 (LINE IN; bare wire)

Alarm Input (ON/OFF signal)

Alarm Output (ON/OFF signal)

Power

Power Source AC24V 3A 60Hz/50Hz

Power Consumption Basic: 8W

AC24V：8W-45W

Smart Features

Smart Tracking manual tracking;auto-tracking;event tracking

Smart Event region entrance detection;region exiting detection

Network

Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTSP,PPPoE,SMTP,NTP,UPnP

API ONVIF,GB28181, Hikvision agreement, dahua agreement

On-Board Storage MicroSD (256G)

Environment

Operating Temperature –45℃~60℃

Operating Humidity ≤ 90%RH

Protection IP66

Structure

Dimensions 310.0 mm × Φ186.0 mm

Net Weight 8 kg (8.60 lb)
