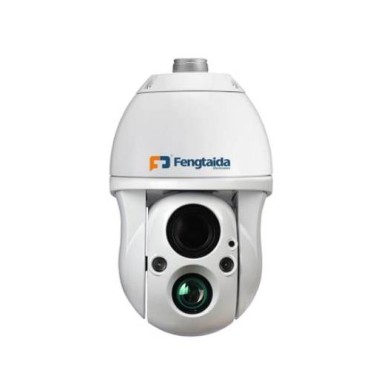

9 inch full Crash-proof aluminum alloy shell, intelligent temperature control allows the speed dome ptz camera to work normally in harsh environments. 360 degrees without blind area and Max 4K for monitoring. Auto-focus and auto-tracking function. Night vision up to 500 meters, so you can see farther and clearer. IR6 PTZ dome camera and can to withstand extreme environment which -45 ˚C ~ +55 ˚C circumstance.

Know more here: https://www.fengtaida.com/products/infrared-ir6-ptz-camera

Product Parameter.

Network Network Interface Ethernet 10/100Base-T (RJ-45)

Network Protocol TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P

Compatibility Support Hikvision,XM,TOPSEE etc center platform management software

Interface Protocol ONVIF2.4/GB28181(Option- Customize)

Mobile monitoring Operating System Android/IOS

Camera Image Sensor 1/2.5” 5.0M 5521CMOS

Optical Zoom 10X-36X

Minimum Illumination Color: 0.1Lux@F1.5; B/W: 0.01Lux@F1.5; 0Lux(IR on)

WDR More than 80dB

S/N Ratio More than 50dB(AGC off)

Day/Night Auto(ICR) / Color / B/W

Angle of View H: 61.2° ~ 2.32°

Electronic Shutter Speed 1/2 - 1/20,000s

Noise Reduction DNR,3DNR

Defog Support

Max. Aperture F1.5~F1.9

White Balance Auto, ATW, Indoor, Outdoor, Manual

Gain Control Auto / Manual

Video Compression H.265/H.264/MJPEG

Video Interface 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB)

Resolution Main stream:2592x1944,2592x1520,2304x1296,1920x1080,1280x960,1280×720,720×576,640×480

Sub stream:640×480,352×288,320×240,176×144

MJPEG:1920x1080,1280×720

Max Frame Rate H.265/H.264: 2592x1944@15fps，2592x1520@22fps；

Bitrate MainStream:10.0Mbps@VBR/Sub Stream:32Kbps@VBR

Audio Algorithm G711,G726,PCM,AAC

Input 1 x Line-In (Mini-stereo, Single Mono)

Output 1 x Line-Out (Mini-stereo, Single Mono)

Pan/Tilt Range Pan : 360°(Endless)/ Tilt: -10~90°

Pan/Tilt Speed Preset Max.:240°/sec

Manual : 0.1° ~ 180°/sec (Zoom Proportional)

Patrol : 1.4°~240° /sec

Preset 241Presets and 14 presets for special function

Patrol Scan 3 Group Patrol

Other Functions Auto Flip, Auto Parking, Power-up Action & etc

Alarm Alarm Input 1(ON/OFF signal)

Alarm Output 1(ON/OFF signal)

Infrared IR distance 200m-500m(Max.)

Wave 850nm

Physical IP protection With IP67

Operating Temperature –45℃~70℃

Humidity 0%~98% (Non condensing)

Store TF Card

Power Source AC24V 3A 60Hz/50Hz; DC12V 5A ;POE

Power Consumption AC24V：8W-45W DC12V/POE：8W-36W
