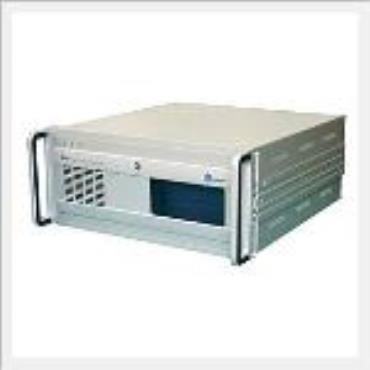

* Description : EZ-3296_Hc(EZ-1648_Hc x 2)/EZ-1648_Hc/EZ-0824_Hc

* Video Input : 32ch/16ch/8ch

* Audio Input : 32ch/16ch/8ch

* Display Speed : Real-Time(16A, 16B)/Real-Time/Real-Time

* Total Recording Speed

NTSC 360x240 : Max. 960 fps/Max. 480 fps/Max. 240 fps

720x240 : Max. 960 fps/Max. 480 fps/Max. 240 fps

720x480 : Max. 960 fps/Max. 480 fps/Max. 240 fps

PAL 360x288 : Max. 800 fps/Max. 400 fps/Max. 200 fps

720x288 : Max. 800 fps/Max. 400 fps/Max. 200 fps

720x576 : Max. 800 fps/Max. 400 fps/Max. 200 fps

*TV Output - 2ch ( 1ch Multi Channel Display, 1ch Sequencial Display)

*Sensor/Control - 4,8,12,16 Expandable

*Compression - H.264 Hardware Compression

*Compressed Image Size - Average 2KB (360x240, Standard Quality)

*Recording Mode - Continuous, Event(Motion, Sensor), Pre/Post-Alarm, Schedule (Camera, Time, Date)

*Searching Option - Date, Time, Thumbnail Preview, Event, Object Search

*PTZ Control - RS-422 / 485 Interface

*Remote Control - Live View & Audio, search, Setup, PTZ control via TCP/IP, ISDN, PSTN ( WebBrowser Viewing)

*Hot-Swap RAID-5 DVR System (Redundant Power Supply)

*System Watchdog - Automatic reset of recorder upon detecting system conflicts
