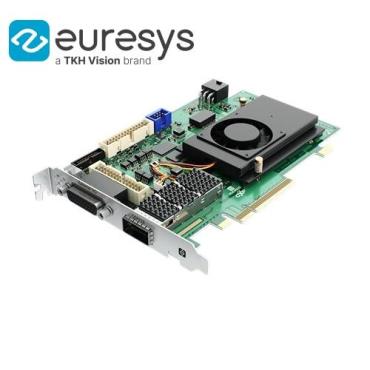

Four-connection CoaXPress CXP-12 frame grabber with on-board laser line extraction for 3D profiling

- Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth

- PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth

- Laser line extraction with zero host CPU usage

- Single and Dual Laser Line Extraction into a depth map

- Real-time generation of 16-bit 3D height maps

- Choice of algorithms: Maximum, Peak, Center of Gravity (COG)

- Precision: up to 1/256 pixel (with Peak and COG algorithms)

- Performance: 76,000 profiles/s from 1024 x 128 images. 152,000 profiles/s from 1024 x 64 images

- Memento Event Logging Tool

- Acquire images from the fastest and highest resolution cameras

- Real-time generation of 16-bit 3D height maps

- Laser line extraction with zero host CPU usage

- Dual laser line extraction

- Long cable support

- Power over CoaXPress

- Use standard coaxial cables

- Micro-BNC (HD-BNC™) connectors for reliable connection

- Area-scan triggering capabilities

- High-performance DMA (Direct Memory Access)

- Compatible with eGrabber

- Compliant with GenICam

- C2C-Link camera synchronization

- Windows, Linux and macOS drivers available

- General purpose I/O lines
