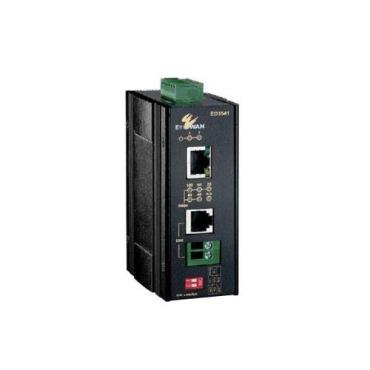

Model: ED3541
Technology
Standards
• IEEE802.3 10BASE-T
• IEEE802.3u 100BASE-TX
• IEEE802.3x full duplex and flow control
Processing Type
• Half-duplex back-pressure and IEEE802.3x Full-duplex flow control
• Auto Negotiation
• Auto MDI/MDIX
Power
Input Voltage
• 12 to 48VDC (Terminal Block)
Power Consumption
• 4.56W max. 0.38A@12VDC, 0.07A@48VDC
Protection
• Over current protection
• Reverse polarity protection
Mechanical
Casing
• Aluminum case
• IP30
Dimensions
• 42 x 90 x 100mm (W x D x H)
(1.65" x 3.54" x 3.94")
Weight
• 0.41 Kg (0.9 lbs.)
Installation
• DIN-Rail (Top hat type 35mm) mounting
Interface
Ethernet Port
• Port: One RJ-45 port
• Speed: 10/100Mbps
• Distance: 100 meters (328ft.)
• Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire), 100BASE-TX: UTP CAT. 5 (4-pair wire)
Ethernet Extender Port
• Port: One RJ-11/Terminal Block port
• Speed: Up to 100Mbps
• Distance: 2200 meters (7217 ft.)
• Cable: Telephone wire 24 AWG
(0.5mm diameter, 1-pair wire) or larger
DIP-Switch
• DIP 1 Site: Auto/Loc
• DIP 2 LDR: ON/OFF
LED Indicators
• Per Unit: Power 1, 2
• Per 10/100TX Port: Link/Activity, Full-duplex
• Line Speed: 100/80/60/40/20Mbps and Link below 20Mbps
Environment
Operating Temperature
• -40 to 75°C (-40 to 167°F)
Tested @ -40 to 85°C (-40 to 185°F)
Storage Temperature
• -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
• 5% to 95% (non-condensing)
Regulatory Approvals
ISO
• Manufactured in an ISO 9001 facility
Safety
UL 60950-1, EN 60950-1, IEC 60950-1
ISA 12.12.01
• Class 1, Division 2 group A, B, C & D for hazardous locations
EMI
FCC Part 15B, Class A
VCCI, Class A
EN 61000-6-4
EMS
EN 61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration Resistance)
IEC 60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
