Technology

Standards

• IEEE802.3 10BASE-T

• IEEE802.3u 100BASE-TX

• IEEE802.3x Full duplex and flow control

• IEEE802.1p QoS

• IEEE802.1Q Tag VLANs

• IEEE802.1w RSTP

• IEEE802.1x Port-based Network Access Control

Forward and Filtering Rate

• 14,880pps for 10Mbps

• 148,810pps for 100Mbps

• 1,488,100pps for 1000Mbps

Packet Buffer Memory

• 2M bits

Processing Type

• Store-and-Forward

• Half-duplex back-pressure and IEEE802.3x full-duplex flow control

Address Table Size

• 8192 MAC addresses

Power Input Voltage

• 12 to 48VDC(Terminal Block)

Power Consumption

• 15.6W Max.,1.3A@12VDC

• 13.7W Max.,0.57A@24VDC

• 13.6W Max.,0.28A@48VDC

Protection

• Over current protection

• Reverse polarity protection

Mechanical Casing

• Aluminum case,IP30

Dimensions

• 73mm x 125mm x 145mm(W x D x H)

2.87" x 4.92" x 5.7"

Weight

• 1.25kg(2.76 lbs.)

Installation

• DIN-Rail(Top hat type 35mm)

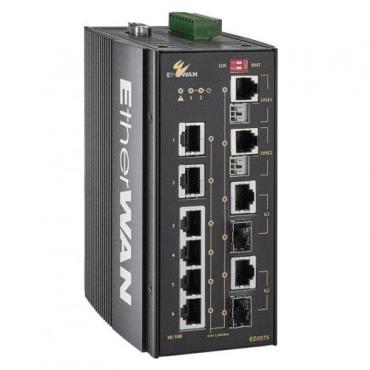

Interface Ethernet Ports

• 10/100BASE-TX: 6 ports

• 10/100/1000BASE-T and 100/1000BASE-X SFP combo: 2 ports

Ethernet Extender Ports

• RJ-11 and Terminal Block port : 2 ports

• Cable: Telephone wire 24 AWG(Minimum 0.5mm diameter,1-pair wire)

LED Indicators

• Per Unit: Power Status(Power 1,Power 2)

• Per Port RJ45: Link/Activity

• Per Extender Port: Link

Console Port

• Port: One DB9 RS-232 port

DIP-Switch

• One DIP Switch: Local(CO) or Remote(CPE)

Alarm Contact

• One relay output with current 1A@24VDC

Environment Operating Temperature

• -40°C to 75°C(-40°F to 167°F)

Tested @ -40°C to 85°C(-40°F to 185°F)

Storage Temperature

• -40°C to 85°C(-40°F to 185°F)

Ambient Relative Humidity

• 5% to 95%(non-condensing)

Regulatory Approvals ISO

• Manufactured in an ISO 9001 facility

Safety

UL60950-1,UL62368,IEC60950-1,EN60950-1

EMI

FCC Part 15B,Class A

VCCI,Class A

EN55022

EN61000-6-4,EN61000-3-2,EN61000-3-3

EMS

EN61000-6-2

• EN61000-4-2(ESD Standards)

• EN61000-4-3(Radiated RFI Standards)

• EN61000-4-4(Burst Standards)

• EN61000-4-5(Surge Standards)

• EN61000-4-6(Induced RFI Standards)

• EN61000-4-8(Magnetic Field Standards)

Environmental Test Compliance

IEC60068-2-6 Fc(Vibration)

IEC60068-2-27 Ea(Shock)

FED STD 101C Method5007.1(Free fall w/package)

Industrial Compliance

NEMA TS2
