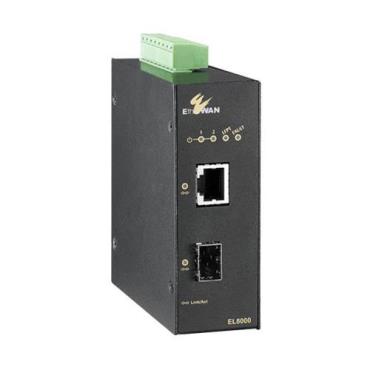

Technology

Standards

• IEEE 802.3ab 1000BASE-T

• IEEE 802.3z 1000BASE-SX/1000BASE-LX

Forward and Filtering Rate

• 148,810pps for 1000Mbps

Processing Type

• Auto Negotiation

• Auto MDI/MDIX

Power

Input Voltage

• 12 to 48VDC

Power Consumption

• 9.12W Max, 0.76A@12VDC, 0.38A@24VDC, 0.19A@48VDC

Protection

• Overload current protection

• Reverse polarity protection

Mechanical

Casing

• Aluminum Case

• IP30

Dimensions

• 35.8 x 90 x 100mm (W x D x H)

(1.41" x 3.54" x 3.94")

Weight

• 0.23Kg (0.51lbs.)

Installation

• DIN-Rail

Interface

Ethernet Port

• 1000BASE-T: 1 port

• 1000BASE-SX/LX/SFP: 1 port

LED Indicators

• Per Unit: Power1, Power2, Fault, LFPT

• Per Port: LNK/ACT

DIP Switch

• No.1: LFPT on/off

• No.2: Alarm for copper port on/off

• No.3: Alarm for fiber port on/off

• No.4: Auto-negotiation for fiber port on/off

Alarm Contact

• Relay contact rating with current 0.6A@30VDC

Environment

Operating Temperature

• -40 to 75°C (-40 to 167°F)

Storage Temperature

• -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

• 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• Manufactured in an ISO 9001 facility

Safety

UL 61010

EMI

FCC Part 15B Class A

VCCI Class A

EN 55032

EN 61000-3-2

EN 61000-3-3

EN 61000-6-3

EMS

EN 61000-6-2

• EN 61000-4-2 (ESD Standards)

• EN 61000-4-3 (Radiated RFI Standards)

• EN 61000-4-4 (Burst Standards)

• EN 61000-4-5 (Surge Standards)

• EN 61000-4-6 (Induced RFI Standards)

• EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance

IEC 60068-2-6 Fc (Vibration Resistance)

IEC 60068-2-27 Ea (Shock)

FED STD 101C Method 5007.1 (Free fall w/package)
