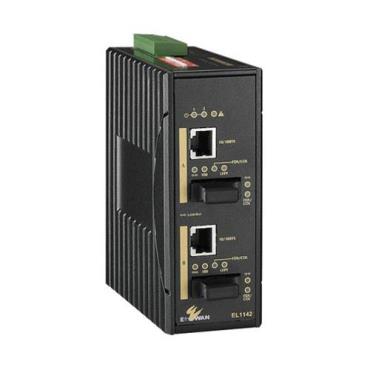

Technology

Standards

• IEEE 802.3 10BASE-T

• IEEE 802.3u 100BASE-TX/FX

• IEEE 802.3x Full-Duplex and flow control

Forward and Filtering Rate

• 14,880pps for 10Mbps

• 148,810pps for 100Mbps

Packet Buffer Memory

• 128K bits

Processing Type

• Store-and-forward

• Auto Negotiation

• Half-Duplex back-pressure and IEEE 802.3x Full-Duplex flow control

• Auto MDI/MDIX

Power

Input Voltage

• 12 to 48VDC (Terminal Block)

Power Consumption

• 4.5W MAX. 0.37A@12VDC, 0.17A@24VDC, 0.09A@48VDC

Protection

• Overload current protection

• Reverse polarity protection

Mechanical

Casing

• Aluminum Case

• IP30

Dimensions

• 50 x 110 x 135mm (W x D x H)

(1.97" x 4.33" x 5.31")

Weight

• 1.2kg (2.64lbs.)

Installation

• DIN-Rail (top hat type 35mm) or panel mounting

Interface

Ethernet Port

• 10/100BASE-TX: 2 ports

• 100BASE-FX: 2 ports

LED Indicators

• Per Unit: Power1, Power2 , Power Alarm

• Per 10/100BASE-TX port: Link/Activity, 100, Full-Duplex/Collision, LFPT

• Per 100BASE-FX port: Link/Activity, Full-Duplex/Collision

Relay Contact

• Dry contact with current 0.6A/30VDC

Environment

Operating Temperature

• -40 to 75°C (-40 to 167°F)

Storage Temperature

• -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

• 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• Manufactured in an ISO 9001 facility

Safety

UL 61010

EMC

FCC Part 15B Class A

VCCI Class A

EN 61000-6-4

EN 61000-6-2 Class A

EN 55032 Class A

EMS

EN 61000-6-2

• EN 61000-4-2 (ESD Standards)

• EN 61000-4-3 (Radiated RFI Standards)

• EN 61000-4-4 (Burst Standards)

• EN 61000-4-5 (Surge Standards)

• EN 61000-4-6 (Induced RFI Standards)

• EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance

IEC 60068-2-6 Fc (Vibration Resistance)

IEC 60068-2-27 Ea (Shock)

FED STD 101C Method 5007.1 (Free fall w/package)

Industrial Compliance

IEC 61850-3/IEEE 1613

EN 50121-4
