Technology

Standards

• IEEE802.3 10BASE-T

• IEEE802.3u 100BASE-TX/100BASE-FX

• IEEE802.3ab 1000BASE-T

• IEEE802.3z 1000BASE-SX/1000BASE-LX

• IEEE802.3x Full duplex and flow control

• IEEE802.1p QoS

• IEEE802.1Q Tag VLANs

• IEEE802.1w RSTP

• IEEE802.1x Port-based Network Access Control

Forward and Filtering Rate

• 14,880pps for 10Mbps

• 148,810pps for 100Mbps

• 1,488,100pps for 1000Mbps

• 14,880,952pps for 10Gbps

Packet Buffer Memory

• 32M bits

Processing Type

• Store-and-Forward

• Auto-Negotiation

• Half-duplex back-pressure and IEEE802.3x full-duplex flow control

• Auto MDI/MDIX

Address Table Size

• 24K

Power Input

• ±48VDC Redundant (Terminal Block)

• 100-240VAC Redundant (Terminal Block)

• 100-240VAC Redundant (AC Inlet)

Power Consumption

• 75W Max.

Mechanical

Casing

• Metal Case

• IP30

Dimensions

• Redundant Power:

442 x 375.5 x 44.2mm (W x D x H)

(17.4" x 14.8" x 1.74")

Weight

• 5.6kg (12.3lbs)

Installation

• Rack mounting

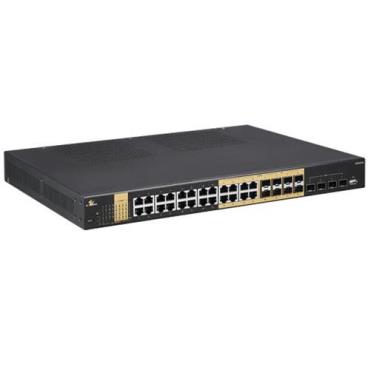

Interface

Ethernet Port

• 10/100/1000BASE-T: 24 or 16 ports

• 1000BASE-SFP: 8 ports

• 10G SFP+: 4 ports

Console Port

• One DB-9 RS-232 port

• One RJ45 managed port

USB port

• One USB port (Type A connector)

Alarm Contact

• One relay output with current 2A/30VDC

Digital Inputs

• Two Digital inputs

• +13 to +30V for state "1"

• 0 to +3V for state "0"

• Max. Input Current: 8 mA

LED Indicators

• Per Unit: Power1, Power2, Alarm

• Per Port: Link/Act (Green)

Environment

Operating Temperature

• -40 to 75°C (-40 to 167°F)

Storage Temperature

• -45 to 85°C (-49 to 185°F)

Ambient Relative Humidity

• 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• Manufactured in an ISO 9001 facility

EMI

FCC Part 15B Class A

VCCI Class A

EN61000-6-4

EMS

EN61000-6-2

• EN61000-4-2 (ESD Standards)

• EN61000-4-3 (Radiated RFI Standards)

• EN61000-4-4 (Burst Standards)

• EN61000-4-5 (Surge Standards)

• EN61000-4-6 (Induced RFI Standards)

• EN61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance

IEC60068-2-6 Fc (Vibration Resistance)

IEC60068-2-27 Ea (Shock)

FED STD 101C Method 5007.1 (Free fall w/package)
