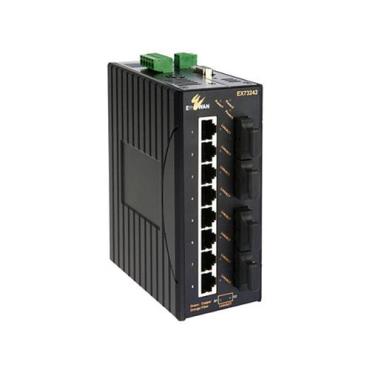

Technology

Standards

• IEEE802.3 10BASE-T

• IEEE802.3u 100BASE-TX/100BASE-FX

• IEEE802.3ab 1000BASE-T

• IEEE802.3z 1000BASE-SX/1000BASE-LX

• IEEE802.3x Full duplex and flow control

• IEEE802.1p Quality of Service (QoS)

• IEEE802.1Q Tag VLANs

• IEEE802.1w RSTP

• IEEE802.1x Port-based Network Access Control

Forward and Filtering Rate

• 14,880pps for 10Mbps

• 148,810pps for 100Mbps

• 1,488,100pps for 1000Mbps

Packet Buffer Memory

• 2M bits

Processing Type

• Store-and-Forward

• Auto Negotiation

• Half-duplex back-pressure and IEEE802.3x full-duplex flow control

• Auto MDI/MDIX

Address Table Size

• 8192 MAC addresses

Power

Input

• Redundant power inputs:

12 - 48VDC (Terminal Block),

12VDC (DC Jack)

Power Consumption

• 15W Max. 1.25A @ 12VDC, 0.625A @ 24VDC

Protection

• Reverse polarity protection

Mechanical

Casing

• Aluminum Case

• IP30

Dimensions

• 65mm (W) x 125mm (D) x145mm (H)

(2.56" (W) x 4.92" (D) x 5.71" (H))

Weight

• 1Kg (2.2lbs.)

Installation

• DIN-Rail (Top hat type 35mm) or Wall mounting

Interface

Ethernet Port

• 10/100BASE-TX: 16, 12 or 8 ports

• 100BASE-FX: 0, 1, 2 or 4 ports

• Gigabit: 0, 1 or 2 ports

Console Port

• Port: One DB9 RS-232 port

LED Indicators

• Per Unit: Power 1, Power 2, Power 3

• Per Port: Link/Activity

(Green: Copper, Orange: Fiber)

Alarm Contact

• One relay output with current 1A @ 24VDC

Environment

Operating Temperature

• -40°C to 75°C (-40°F to 167°F)

Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature

• -45°C to 85°C (-49°F to 185°F)

Ambient Relative Humidity

• 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• Manufactured in an ISO9001 facility

Safety

UL508

ISA 12.12.01

EMI

FCC Part 15B, Class A

EN61000-6-4

EN55022

EN61000-3-2

EN61000-3-3

EMS

EN61000-6-2

• EN61000-4-2 (ESD Standards)

• EN61000-4-3 (Radiated RFI Standards)

• EN61000-4-4 (Burst Standards)

• EN61000-4-5 (Surge Standards)

• EN61000-4-6 (Induced RFI Standards)

• EN61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances

IEC60068-2-6 Fc (Vibration Resistance)

FED STD 101C Method 5007.1 (Free fall w/ package)

Industrial Compliance

NEMA TS2
