Feature:

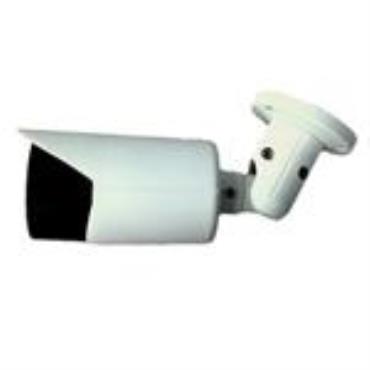

IP66 Waterproof Bullet IP Camera

Frame Rate:NTSC:30fps PAL:25fps

Lens:Board Lens 3.6mm (3M Pixels)

IR Led:36pieces x F5 IR Range: 30m

Support more than 20 languages

& Mobile Phone View&Free CMS

& DDNS&Motion Detection

Power: DC12V. POE optional

Audio Funtion Optiona

Ambarella/Hisilicon/TI Chipset Optional

Specification

Model No.: EST-IPA6473 EST-IPH6472 EST-IPH6472E

System: Embedded RTOS design

Effective Pixels: 3.0 Mega Pixels 2.0 Megapixels 2.0 Mega Pixels

Main stream:2048*1536;1920*1080 Main stream:1920*1080;1280*720 Main stream:1920*1080;1280*720

Sub stream:704*576 Sub stream:704*576 Sub stream:704*576

Frames Rates: PAL:20fps(2048*1536)

25fps(1920*1080) PAL:25fps(1920*1080)/(1280*720) PAL:25fps(1920*1080)/(1280*720)

NTSC:20fps(2048*1536)

30fps(1920*1080)/ NTSC:30fps(1920*1080)/(1280*720) NTSC:30fps(1920*1080)/(1280*720)

Image Sensor: 1/3" Aptina CMOS Sensor 1/2.8" SONY Exmor IMX222 CMOS Sensor 1/2.7" OV2710 CMOS Sensor

3.5 Megapixel resolution (2304H*1536V) 2.48 Megapixel resolution (2000H*1241V) 2.0 Megapixel resolution

DSP: Dual core 32-bit DSP Dual core 32-bit DSP Dual core 32-bit DSP

(A5S88) (Hi3516) (Hi3516)

Min. Illumination: Color 0.01Lux@F1.2 Color 0.01Lux@F1.2 Color 0.01Lux@F1.2

B/W 0.001 Lux@F1.2 B/W 0.001 Lux@F1.2 B/W 0.01 Lux@F1.2

Adjust Parameters: DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video Compression: H.264 Main profile H.264 Main profile H.264 Main profile

Stream: support dual stream,AVI format support dual stream,AVI format support dual stream,AVI format

Bit Rate: support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable

Frame Rates: support 1~30fps adjust support 1~30fps adjust support 1~30fps adjust

Audio Input and output:1ch input( micphone),1ch output( Speaker&micphone) Optional

Compression: G.711 compression,support two-way audio intercom,support audio and video synchronized output

Alarm Types: Motion Detection, Video Blind , Video Loss

Network WEB Browser: Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone: mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)

CMS Software: Uniform CMS Software(multiple devices management system)

Cloud P2P: www.p2pipc.net,MYEYE platform and other program,Offer SDK

Network: 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF: Support (ONVIF 2.0)

POE: Support(optional)

WIFI: N/A

General Language: 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish

IR Cut Filter: Set of double light switch IR-CUT filter

Lens Mount: Board Lens 3.6mm (3MP)

Infrared Luminary: 36 pieces IR-LED

Infrared Wavelength: 850 nm

Illuminate Distance: More than 30 M

Waterproof Criterion: IP 66

I/O Connector: 1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage: DC12V/PoE(802.3af/820.3at)

Power Consumption: IR On: 600mA max., IR Off: Less than 200mA

Working Enviroment: -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )

Dimensions: 200*100*85mm

Weight: 0.7 kg
