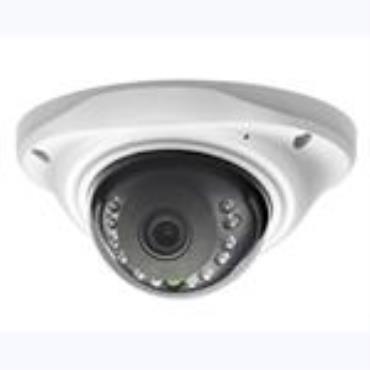

EST-CVI3352

Feature:

Housing VandalProof Design

IP66 Weatherproof

Lens:Varifocal 2.8-12mm

Adjustable Zoom&Focus

Built-in 30 pieces IR-LED

IR Range:25m

2.0 MegaPixel,25/30fps@1080P

long-distance real-timetransmission

Over 500m transmission distance

Model No. EST-CVI3352 EST-CVI3352E EST-CVI3351

Camera Type HD CVI Camera

Effective Pixels 2.0 Mega Pixels 1080P(25/30fps) 2.0 Megapixels

1080P(25/30fps) 1.0 Mega Pixels 720P(25/30fps)

Image Sensor 1/2.8" SONY Exmor CMOS Sensor 1/3" CMOS Sensor 1/3" CMOS Sensor

DSP dahua 9801 dahua 9801 dahua 9801

Min. Illumination Color 0.01Lux@F1.2 Color 0.01Lux@F1.2 Color 0.01Lux@F1.2

B/W 0.001 Lux@F1.2 B/W 0.001 Lux@F1.2 B/W 0.01 Lux@F1.2

Signal System PAL/NTSC or CVI

On Screen Display Yes,DVRControl N/A N/A

OSD Function Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone

IR Cut Filter

IR LED synchronous switching double filter

Lens Mount Varicoal Lens 2.8-12mm

Infrared Luminary 36 pieces IR-LEDs

Infrared Wavelength 850 nm

Illuminate Distance More than 25 M

Waterproof Criterion IP 66

I/O Connector 1*DC Power Connector ,1* BNC Video Connector

Supplied Voltage DC12V

Power Consumption IR On: 600mA max., IR Off: Less than 200mA

Working Enviroment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )

Dimensions 200*100*85mm

Weight 0.9 kg
