Feature:

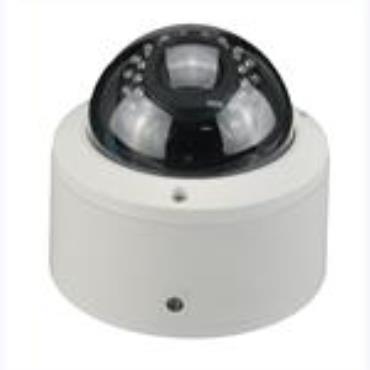

Vandalproof Metal Doem camera

Externally adjust for Zoom&Focus

Frame Rate:NTSC:30fps PAL:25fps

Lens:Varifocal 2.8-12MM (2M Pixels)

IR Led:30pieces x F5 IR Range:25m

Power: DC12V. POE optional

Support more than 20 languages

& Mobile Phone View

& Free CMS & DDNS&Motion Detection

Specification

Model No. EST-IPH3512 EST-IPH3513 EST-IPH3511

Camera Type IP Camera

System Embedded RTOS design

Camera Effective Pixels 2.0 Mega Pixels 1.3 Megapixels 1.0 Mega Pixels

Main stream:1920*1080;1280*720 Main stream:1280*960;1280*720 Main stream:1280*720

Sub stream:704*576 Sub stream:704*576 Sub stream:704*576

Frames Rates PAL:25fps(1920*1080)/(1280*720) PAL:25fps(1280*960)/(1280*720) PAL:25fps(1280*720)

NTSC:30fps(1920*1080)/(1280*720) NTSC:30fps(1280*960)/(1280*720) NTSC:30fps(1280*720)

Image Sensor 1/2.8" SONY Exmor IMX122 CMOS Sensor 1/3" Aptina AR0130 CMOS Sensor 1/4" OV9712 CMOS Sensor

2.48 megapixel resolution (2000H*1241V) 1.3 megapixel resolution (1280H*960V) 1.0 megapixel resolution (1280*800)

DSP Dual core 32-bit DSP Dual core 32-bit DSP Dual core 32-bit DSP

(Hi3516) (Hi3518C) (Hi3518C)

Min. Illumination Color 0.01Lux@F1.2 Color 0.01Lux@F1.2 Color 0.6Lux@F1.2

B/W 0.001 Lux@F1.2 B/W 0.001 Lux@F1.2 B/W 0.08 Lux@F1.2

Adjust Parameters DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video Compression H.264 Main profile H.264 Main profile H.264 Main profile

Stream support dual stream,AVI format support dual stream,AVI format support dual stream,AVI format

Bit Rate support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable

Frame Rates support 1~30fps adjust support 1~30fps adjust support 1~30fps adjust

Audio Input and output 1ch input( micphone),1ch output( Speaker&micphone) Optional

Compression G.711 compression,support two-way audio intercom,support audio and video synchronized output

Alarm Types Motion Detection, Video Blind , Video Loss

Network WEB Browser Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)

CMS Software Uniform CMS Software(multiple devices management system)

Cloud P2P www.p2pipc.net,MYEYE platform and other program,Offer SDK

Network 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF Support (ONVIF 2.0)

POE Support(optional)

WIFI NA

General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish

IR Cut Filter Set of double light switch IR-CUT filter

Lens Mount Varifocal Lens 2.8 -12mm(2MP)

Infrared Luminary 30 pieces IR-LED

Infrared Wavelength 850 nm

Illuminate Distance More than 25M

Waterproof Criterion IP 66

I/O Connector 1*DC Connector ,1* RJ45(10/100M Network),1*BNC connector( CVBS,Option )

Supplied Voltage DC12V/PoE(802.3af/820.3at)

Power Consumption IR On: 600mA max., IR Off: Less than 200mA

Working Enviroment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )

Dimensions 200*100*85mm

Weight 1.4 kg
