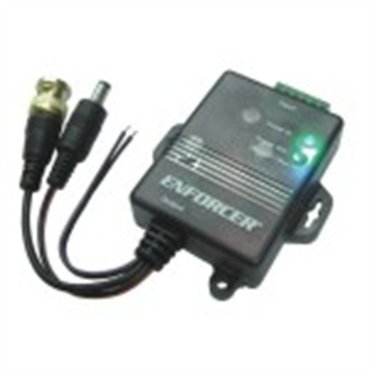

SECO-LARM's new EVT-PB1-L05Q Video, Power and Data (VPD)Balun with Voltage Converter Combines the flexibility of a VPD Balun with the ability to convert AC or DC voltage for use in low voltage DC applications. The VPD balun with voltage converter changes 12/24 VAC/VDC input voltage to a regulated 5/12/24 VDC adustable output voltage. Converted DC power is regulated to provide stable power suitable for voltage sensitive cameras.

*Video, power and data (VPD) over Cat5

*Built-in power converter that converts 24VAC to 12VDC(1A)

*Transmits a monochrome video signal up to 2,000 feet (610m) or color up to 1,300 feet(400m)

*Passive operation - No external power required.

*Uses low-cost Cat5 cable instead of the costly coaxial cables.

*High immunity from interference - Built-in impedance coupled device and noise filter.

*Gold-plated BNC connector for reliability and longer life.

*Built-in multi-color LED indicates power is on and polarity is correct

*Built-in DC-plug power connector and data wire.

*Removable terminal blocks

*Small size for easy installation, (64 x 50 x 19mm) excluding 6" (150mm) cable.
