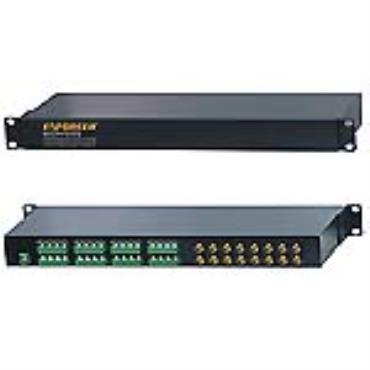

The EVT-PH16-4T2 allows up to 16 color or monochrome CCTV cameras to be connected via inexpensive CAT 5e unshielded twisted pair (UTP) cable to a video switcher or multiplexer. It cuts the cost and complexity of security networks by eliminating the need to run expensive coax cable to multiple CCTV cameras. A built-in RS485 port allows the transmission of PTZ (pan/tilt/zoom) signals to up to 16 CCTV cameras or other devices.

*Connects up to 16 CCTV cameras using low-cost CAT 5e UTP cable to a central location

*Works in conjunction with passive video or active video baluns

*Works with full-motion CCTV cameras up to 2,000 feet (610 meters) away remove 1 space via passive video baluns

*Feeds the camera signals to nearly any standard video multilexer or switcher or digital video recorder via coax cables

*Built-in RS485 port connects to a PC or other device to control the pan, tilt, and zoom (PTZ) of up to 16 remote cameras or devices.

*Complete passive operation, no power required.
