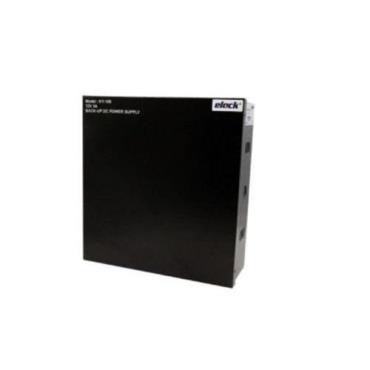

elock Power Supply KY-100 offers consistent & reliable regulated full 3 Amps 12Vdc output. Built-in with Battery charger circuit that enables user to have battery back-up features with battery.

- Overload Protection

- Built-in backup battery charger

- Battery low cut-off

- Output voltage adjustment.

- Dimension:- 245mm W x 255mm H x 88mm D

Specification

- Input Voltage: 220~240 Vac

- Input frequency: 50Hz / 60Hz

- No load power consumption: 12 Watts

- Output no load voltage: 13.5 Vdc

- Output rated voltage: 13.0 Vdc

- Output rated current: 3.0 Adc

- Maximum Power Consumption: 53 Watts

- Load regulation: NL to FL 3%

- Battery low cut-off: 10.5 Vdc

- Operating temperature: 0~65 deg C

- IP rating : IP20

- Casing Surface finishing: Oven baked Epoxy Powder coating.
