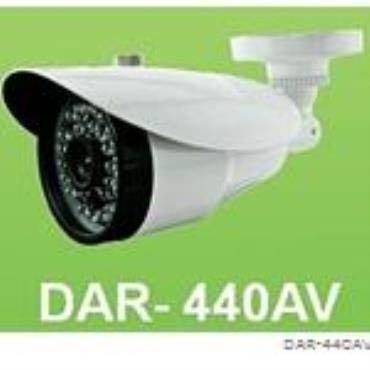

40m color IR bullet camera,

36pcs IR LEDs, IP66,

2.8~12mm vari-focal lens, DC12V,

with cable management bracket,

with OSD cable

*** SPECTIFICATIONS ***

System NTSC / PAL OSD adjustment

Pick-up Device 1/3” Aptina CMOS sensor

Active Picture Elements 1280(H) x 960(V) ( 720P / 960P optional)

Synchronization System Internal

Gamma Correct 0.45

Minimum Illumination 0.01 Lux / 0 Lux with IR LED.

IR LED 36 Pieces @ 850nm

Projection Distance 40 m

Horizontal Resolution 1.3 M pixel

White Balance Auto Trace White Balance(2500K ~ 9500K)

Electric Shutter 1/60(1/50) ~ 1/100,000 sec

S/N Ratio More than 49 dB (AGC Off)

Lens 2.8~12mm

Auto Gain Control (AGC) Auto

Back Light Compensation (BLC) Auto

Video Output BNC composite: 1.0 Vp-p / 75 ohms

Operation Temperature -10oC ~ +50oC

Power Consumption DC12V/ 75mA ± 6mA

Current 180mA (max) DC 12V

Language English, Spanish, Germany, Italian, French, Chinese, Japanese
