- RS-485 for system control

- 1/4” Sony ExView HAD CCD sensor (EL-SD860, EL-SD890)

- Privacy zone for masking function

- On-Screen compass, temperature, pan tilt degrees, and zoom display

- 300 degree/sec pan and tilt speed

- Programmable locations labels and on-screen-displays

- Patterns, Cruise, user-defined programmable pattern, include pan, tilt, zoom

- 8 groups, up to16preset points for each group with programmable name, and dwelling time ( 0~255s)

- Up to 256 preset points with preset point freeze function

- 8 groups of programmable patterns with combination cruise, presets and group

- Build-in auto calibration for the system accuracy

- Proportional pan and tilt makes speed dome continuously decreases pan and tilt speeds in proportion to depth of zoom.

- Build-in video and control signal surge protection, up to 15KV thunder protection

- Build-in up to 9 groups of protocol to increase the system compatibility

- Auto flip rotates dome 180 degrees at bottom of tilt travel

- IP 66 weather proof standard for both indoor and outdoor application in hostile environment

Optional:

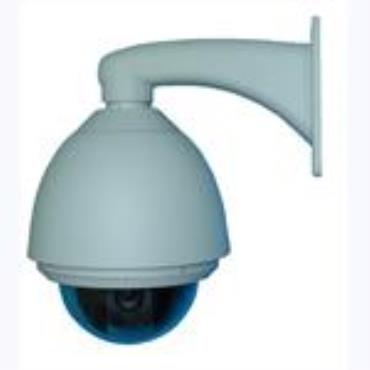

EL-SD890-2 (36x Outdoor High Speed Dome Camera)

EL-SD670-2 (27x Outdoor High Speed Dome Camera)

EL-SD880-2 (26x Outdoor High Speed Dome Camera)

EL-SD860-2 (18x Outdoor High Speed Dome Camera, w/ Removable IR Filter )

EL-SD830-2 (18x Outdoor High Speed Dome Camera, w/o Removable IR Filter )

Download Detail Specification:

http://www.elitar.com/files/driver/201106290053371.pdf
