HDBaseT Extender Set - 100m (4K up to 70m), Bi-directional IR, Bi-directional PoH (PoE), Audio Breakout, ARC, RS-232, 3 x LAN switch, HDMI Loop Out, HDCP 2.2

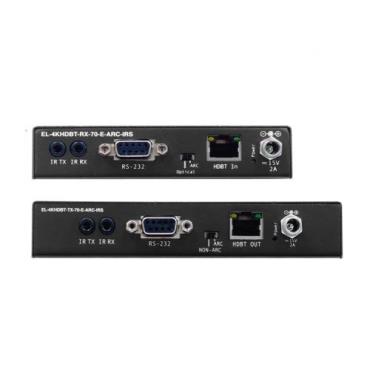

The EL-4KHDBT-KIT-70-E-ARC-IRS extender set is an industry 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m (4K up to 70m) over a single CAT cable. The EL-4KHDBT-KIT-70-E-ARC-IRS also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Feature

• Extends HDMI 1080p up to a distance of 100m over single CAT cable
• Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Features 1x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs
• Supports audio return to HDMI, Optical digital and analog L/R audio outputs (DAC supports 2CH PCM only)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Integrated 3-port Ethernet switch (LAN Serving)Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Includes 1 x 5v-to-12v IR converter cable for IR Input
• Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver endHDCP 2.2 compliant
