Voltage Input : 12 VDC / 24 VDC

Current Draw : 12V / 480mA ; 24V / 240mA (∮5%)

Holding Force (Max) : 600 lbs (272 kg)

Dry Reed Contact (Max) : 100VDC, 0.25A, 3W

Anti-Rust Surface Treatment : Blue Zinc Plating

Operating Temperature : 0~55 C ( 32~131 F)

Operating Humidity : 0~95% ( non condensing)

Weight ( Magnet) : 1.0 kg (∮1%)

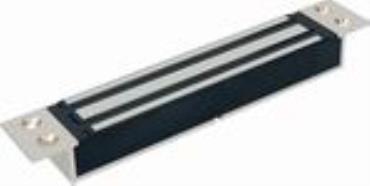

Dimensions : Magnet - (L)228x(W)38x(T)27 mm

Armature - (L)180x(W)38x(T)11 mm
