WM-U100A

Feature:

State of art design UHF wireless microphone system of tabletop design in 1U height.

Ideal for speech, announcement, meeting system or religious gathering and life performance use.

Suitable for hotel, factory, school, restaurant, train station, church, mosque sound system use.

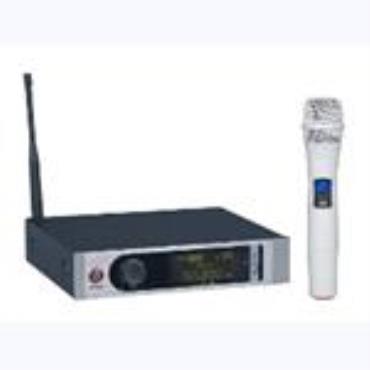

Includes single channel receiver with LCD and one handheld transmitter microphone with LCD.

Support 200 sets working at the same time by different channels with PLL automatic phase lock.

Support more than 150 meters operation distance.

Handheld microphone is powered by DC3V, battery working time more than 10 hours and standby 30 hours.

Strong damage proof design dynamic microphone with high sensitivity.

Wide power supply of AC 110V to 230V.

Option: Clip transmitter with receiver.

Model

WM-U100A

Description

Dual Channel UHF Wireless Microphone System

Frequency Point

200 points

Frequency Match

Infrared auto matching

Surge Mode

PLL phase lock

Frequency Response

40Hz-15KHz

Dynamic Range

≥90dB

THD

≤0.5%

S/N Ratio

≥90dB

Operation Distance

150 meters

Operation Temp

-10℃ to +55℃

Carrier Frequency Range

720-830MHz

Receiver

Sensitivity

>2mV

Image Rejection

>50dB

De-Emphasis

50μS

Audio Output Impedance

600Ω

Audio Output Level

0 to±400mV

Power Supply

AC110V to 230V

Power Consumption

40dB

Modulation Mode

FM, F3E

Max Deviation Range

±50KHz

Microphone Type

Dynamic microphone

Pre-Emphasis

50μS

Power Supply

DC3V (AA1.5V×2)

Power Consumption

≤80mA

Dimension

53(D)×250(H)mm

Weight

0.23kg
