CS-603

Features:

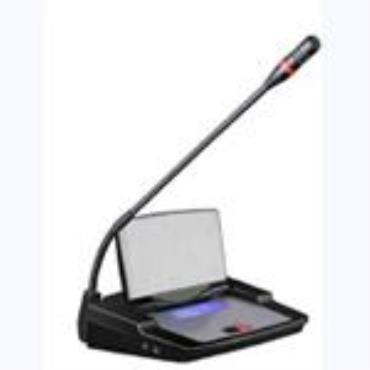

The chairman unit is specially designed for discussion system.

Classic range and excellent voice restoration system.

Ideal use in board room, meeting room, conference room in hotel, office and government.

The capacity of system is 60 units and max 250 units by cascaded more extension controller.

Tabletop deign microphone type with cover for easy mobile installation.

Built-in 2” colorful LCD display ID and status.

Chairman unit with priority over delegate unit when speech.

Chairman unit with one red priority button except one microphone on button.

Chairman unit can turn off the delegate unit speech.

The system support only chairman speech mode without any interruption from others. Delegate units could speech only after the chairman unit exit the “Chairman Mode”.

Support multiple discussion modes: free, first in first out, and limited discussion.

Support free discussion quantity of 1, 2, 3 and 5.

Built-in 3W hi-fi monitor speaker, which will be automatically off for a while when microphone is on.

With one 3.5mm earphone input.

With monitor speaker volume control.

With round ring indicator will be light on when microphone on.

Gooseneck length of 380mm, other length could be customized without addition cost.

Gooseneck color of black, silver could be optional.

Voting, simultaneous interpretation and auto video tracking function are optional functions.

Specifications:

Model

CS-603

Description

Conference System Chairman Unit

System Capacity

60 units and 250 units by cascaded more extension controller

Connection Way

Bus way, each microphone unit connected to the main line

Power Supply

DC24V by controller

Voice Pickup Distance

15-50cm

Sensitivity

-44dB±2dB

Frequency Response

40Hz-16KHz

Monitor

Built-in 3W monitor speaker with output volume control

Control

One 3.5mm earphone input

Indicator

Red round ring indicator light on when microphone on

Button

One microphone on in black and one priority in red

Gooseneck Length

350mm

Finish

ABS in black

Cable

2 meters cable with T-shaped plug are included

Dimension

245(W)×140(D)×48(H)mm

Weight

1kg
