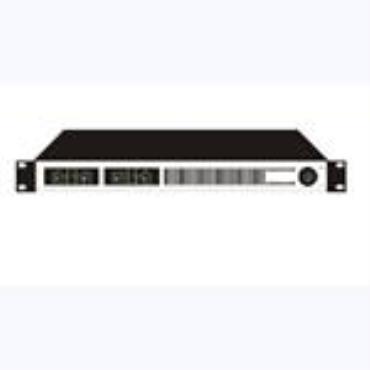

CX4.4

Description:

The professional sound range digital class-d amplifier is designed with switching power technology, whose advantages are without transformer for less heat generation and long life span. Moreover, higher efficiency of more than 85% could help to decrease the power electricity consumption by green environment protection. Special power circuit design of PWM to ensure the world first level natural cooling system with additional four fans.

The 19” rack mount design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor.

The rated power output of this amplifier is 4×400W, so it is enough for most of the meeting room, small stadium, bar, theme park and train station indoor and outdoor sound system, capacity of maximum connection of eight professional sound low impedance loudspeakers.

Feature:

Robust performance range professional stereo power amplifier.

Ideal for life performance, permanent installation and reinforcement sound system.

Switching power technology digital Class-D level power amplifier.

Green technology amplifier by 85% efficiency of less power consumption, higher power output, less heat generation and longer life span.

With PWM special power circuit to ensure excellent cooling system.

19” universal rack mount type in 1U height.

Minimum weight less than 10kgs without transformer technology.

Support stereo output at 8Ω and 4Ω from 400W to 1400W.

Support bridged output mode as well.

Input by balanced Combo female connector of two channels.

Link by balanced XLR female connector of two channels.

Output by balanced Speakon female connector of two channels.

Complete protection include clip, high temp, overload and short circuit.

With four fans for cooling down the internal temperature.

Visual indicator of output level meter, bridge, power, protection and clip.

Specification:

Model

CX4.4

Channel

4

Stereo Mode @ 8Ω

4×400W

Stereo Mode @ 4Ω

4×750W

Max Output

57V

Input Sensitivity

1V

Max Input Level

26dBu

Gain

34dB

THD

75dB

Frequency Response

20Hz~20KHz

Input Impedance

10K

Damping Parameter

>1000 （8Ω，20HZ~200HZ)

S/N Ratio

>105dB (20HZ~20KHZ）

Power Consumption

550VA (1/8 Max Output @4Ω)

Power Consumption

1100VA (1/4 Max Output @4Ω)

Connector

Input by Combo female, link by XLR female, output by Speakon female.

Efficiency

>85%

Power Supply

AC 230V or 115V, 50~60Hz

Dimension

483(W)*350(D)*44(H)mm

Weight

9kg
