introduction

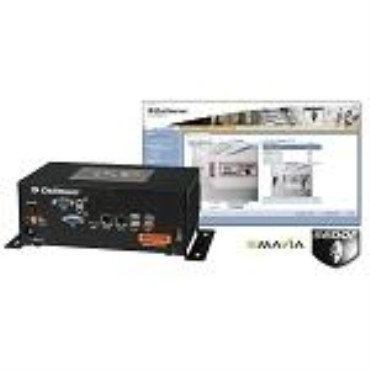

The DVS 800 IPS is a compact and versatile SEDOR video analysis server appliance on basis of the VideoNetBox II. The well-proven hardware supports the analysis of up to 4 IP video channels and the recording of up to 8 IP video channels.

Analysis
The dedicated analysis server software DVS Analysis Server is configured using the integrated SEDOR® WebGUI over Ethernet (browser).
Together with the optional licenses for the various SEDOR analysis applications, up to 4 IP video channels can be used for video analysis.

Output
Analysis results can be output in real-time directly to the external management clients PGuard advance and SMAVIA Viewing Client. In addition, they can be sent as a message in XML format or used for the control of external relays over Ethernet. The results of counting applications can be represented graphically or in tabular form using the optional display and evaluation module SEDOR DiViStic over Ethernet with a browser.

Recording
The integrated VideoIP server software SMAVIA Recording Server is configured over Ethernet with a browser. The basic version is already equipped with licenses for the recording of 2 IP video channels. It can be expanded with up to 6 additional IP video channels using license codes.

Evaluation
The corresponding software SMAVIA Viewing Client for Microsoft Windows1) 7/8 operating systems allows for the independent and convenient evaluation of the recordings over Ethernet (LAN/WAN).

The DVS 800 IPS has a compact housing and is perfectly suited for wall mountings.

Key Feature
* Up to 4 analysis channels supported
* Supports Dallmeier IP cameras
* SEDOR analysis application art optional
* SEDOR analysis application Intruder optional
* SEDOR analysis application object counting optional
* SEDOR WebGUI for analysis configuration over Ethernet integrated
