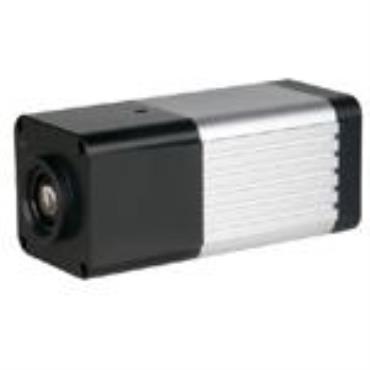

Dallmeier DF4820HD-DN  3MP P-Iris lens box camera
Dallmeier DF4820HD-DN 3MP P-Iris lens box camera
Dallmeier electronic
Region: Germany
Update: 2014/05/08
INQUIRY
Key Specifications
* 3-megapixel HD network camera
* 1/2.5" CMOS image sensor
* Pure Digital Signal Processing
* Real-time Full HD video (1080p/30)
* Automatic Day/Night switching using ambient light sensing and ICR function (switching threshold level adjustable)
* High light sensitivity (0.5 lux at F1.2, 50 IRE)
* Motor-driven megapixel varifocal lens Zoom, focus and iris control conveniently adjustable via web browser
* One-Push AF (Autofocus) with manual fine adjustment
* P-Iris control for an optimum image quality and significantly enhanced depth of field
* Resolution: SD (up to D1), HD (720p, 1080p, 2MP, 3MP)
* Video compression: H.264, MJPEG
* Frame rate up to 30 fps
* Simultaneous Dual- or Tri-Streaming
* Automatic White Balance (ATW, One-Push AWB)
* Manual White Balance (MWB)
* Automatic Gain Control (AGC)
* Automatic Electronic Shutter (AES)
* Comprehensive set of image optimization functions like brightness, contrast, saturation and sharpness
* 3D Digital Noise Reduction (3D DNR)
* Three different exposure metering modes: average metering (light information from entire scene),centre-weighted average metering and spot metering
* Privacy Zone Masking (hiding/masking of protected areas)
* Flip function (horizontal, vertical or both)
* Digital Image Shift
* Motion detection with selectable sensitivity
* Alarm notification via DaVid Protocol4), e-mail and FTP image upload
* EdgeStorage for Emergency Recording with SmartBackfill
* Storage expansion with SDHC card (Class 10)
* Analog video preview output (CVBS) Audio OUT / Microphone IN
* Voltage supply with 12V DC or via PoE (Class 0, IEEE 802.3af)
* Low power consumption (max. 4.5W)
* Compact and lightweight housing
* ONVIF compliant
* DIN EN 50130-4 compliant
