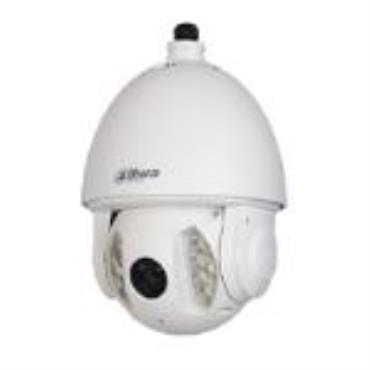

Model No. SD6A230-HS
SDI Tx Chip: DS32EL0421
Image Sensor: 1/3” 2Megapixel progressive scan Exmor CMOS
Minimum Illumination:  Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6

Video Setting:

Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D / 3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Defog On / Off

S/N Ratio: More than 50dB
Image Resolution:  1080p(25/30fps), 720p(25/30/50/60fps)
Max. Power Consumption: 20W, 43W (IR on, Heater on)
Power Input: AC24/3A(±16%)
Interface: Support RS485 System parameters configuration
