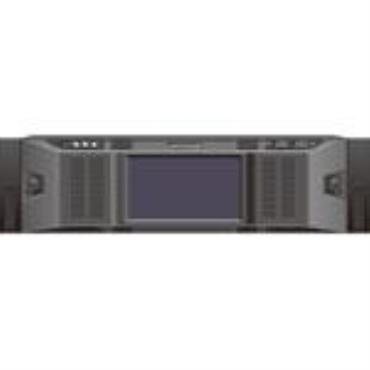

Model
|
DH-NVR6000
|
System
|
|
Operating System
|
Embedded LINUX
|
Motherboard
|
Embedded Board (Support 7x24 operation)
|
Memory
|
4GB DDR3(up to 8GB)
|
Case
|
Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design
|
Fan
|
Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation
|
Interface
|
Local GUI &WEB GUI
|
Video & Audio
|
|
Input
|
128ch@D1/64ch@720P/32ch@1080P
|
Transmission
|
128ch@D1/64ch@720P/32ch@1080P
|
Recording
|
128ch@D1/64ch@720P/32ch@1080P
|
Preview
|
6ch@1080P/9ch@720P/36ch@D1
|
Playback
|
6ch@1080P/9ch@720P/36ch@D1
|
Recording Resolution
|
5M, 3M, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
|
Audio
|
1ch input,1ch output, 1ch microphone
|
Recording
|
|
Recording Mode
|
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
|
Alarm Recording
|
Video loss, Camera blank, Motion detection, External alarm
|
Backup Mode
|
Network download / USB HDD/USB CD&DVD-RW / eSATA Device
|
Display
|
|
Interface
|
6 HDMI, 1 VGA
|
Video Output
|
6 HDMI, or 1ch VGA(or built-in LCD) and 5ch HDMI sync video output
|
Multi-screen Display
|
The 1st screen: 1/4/6/8/9/16/32/64/128
The 2nd-6th screens: 4
|
Privacy Masking
|
Four customized zones for privacy masking for each area
|
Hard Disk
|
|
Hard Disk
|
16 SATA II s
|
HDD Mode
|
Single, Raid 0, Raid 1, Raid 5. (Support global HDD Hot-standby)
|
HDD Installation
|
Independent HDD rack, support hot swap
|
Network
|
|
Interface
|
4 RJ-45 ports(10/100/1000M)
|
Ethernet Port
|
4 Ethernet ports joint working or 4 independent 1000M Ethernet ports
|
MD & Alarm
|
|
Motion Detection
|
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
|
Alarm Input
|
16ch, low level effective, green terminal interface
|
Relay Output
|
8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
|
Interface
|
|
Front cover
|
Support hot swap, 7" inch HD LCD (1024 x 768)
|
USB
|
4 USB ports(2 on the front-panel, 2 on the rear panel)
|
eSATA
|
1 eSATA
|
Environmental
|
|
Power Supply
|
100V-240Vac, 47-63Hz
|
Power Consumption
|
<240W(Include HDD)
|
Working Environment
|
5?C~40?C
|
Working Humidity
|
10%~80% ( non-condensation)
|
Dimension
|
133mm*446mm*500mm(W×D×H)
|
Weight
|
35Kg
|
Installation
|
Rack-mounted
|
