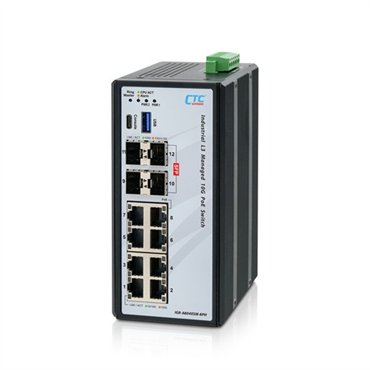

The industrial Layer 3 cyber-hardened managed PoE switch IGR-A804XSM-8PH is one of our new generation designs and comes with 8 gigabit UTP ports, each complies with IEEE802.3af/at up to 30W PoE+ standard. Equipped with 4 100M/1G/2.5G/10G SFP slots for fiber optic connectivity meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide temperature operation, 48VDC redundant power input, and is designed to comply with cybersecurity regulations. Suitable for heavy-duty applications in harsh environments such as industrial factory automation, data centers, smart transportation systems, military and utility market applications beyond environmental conditions commercial product specifications.

Features：

▪ 48VDC (44~57VDC) redundant dual power input

▪ 8-port IEEE 802.3af/at PoE+ output, 30W per port, 240W total

▪ Supports 5 ring instances: µ-Ring, µ-Chain or Sub-Ring

▪ µ-Ring redundancy, recovery time <20ms in 250 devices

▪ Supports EMS Management

▪ 10 Gigabit fiber transmission distance ≥10 km

▪ Instant alarms for power or communication failures with real-time signals transmitted to NMS

👉 https://pse.is/9mjtuz
