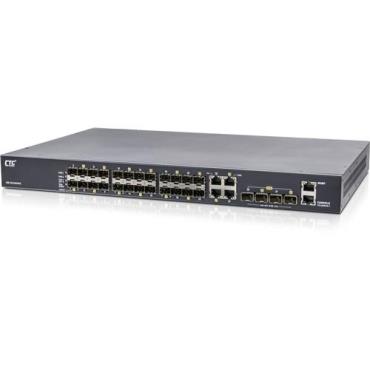

As an industrial Layer 3 Ethernet switch for process and transportation automation applications, IXR-GS24044X supports static and dynamic routing protocols, features 4 10G SFP+ slots, 24 100/1000 SFP slots and 4 Gigabit UTP ports, fanless design and redundancy isolated power supplies, certified to many industry-grade standards, are ideal for deployment in harsh environments to provide mission-critical network services.

Features

▪ Redundant isolated 24/48/-48VDC (18~60VDC), or/and isolated 110/220VAC power inputs

▪ Supports negative voltage power input

▪ 2.25K VDC Hi-pot isolation protection for Ethernet ports and power

▪ STP, RSTP, MSTP, G.8031 EPS, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy

▪ Provides 14 instances each can support μ-Ring, u-Chain or Sub-Ring for flexible networking applications

▪ μ-Ring redundancy, recovery time <20ms in 250 devices

▪ Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End

Transparent Clock, Master, Slave mode by each port

▪ Supports EMS Management
