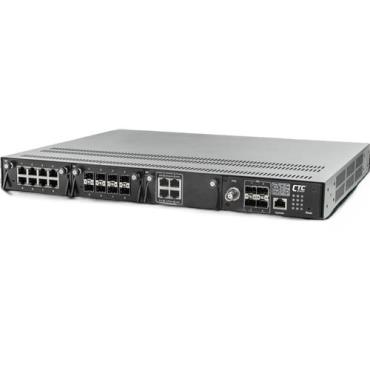

The industrial grade IEC61850-3 Ethernet switch adopts an enhanced design to meet the substation IEC61850-3 and IEEE 1613

certification requirements. It provides up to 24 Gigabit Ethernet ports, which can be implemented through 4 types of Ethernet

modules, including Gigabit copper ports, SFP slots and HSR/PRP Redbox modules, compliant with IEC 62439-3 clause 4 and 5

protocols for seamless redundancy, and it is equipped with 4 10 Gigabit SFP+ slot ports for uplinks. Its redundant power inputs

increase system reliability and uninterrupted availability of the network backbone. This switch is ideal for smart grids and substations

for Ethernet communication deployment in substations.

Features

▪ Redundant 24~120VDC, 100~240VAC or 120~380VDC power inputs

▪ Rugged metal, IP30 protection & Fanless design

▪ Supports GOOSE Message that complies with IEC61850 standard to achieve zero packet loss

▪ Operating in wide temperature environments between -40 ~ 85°C
