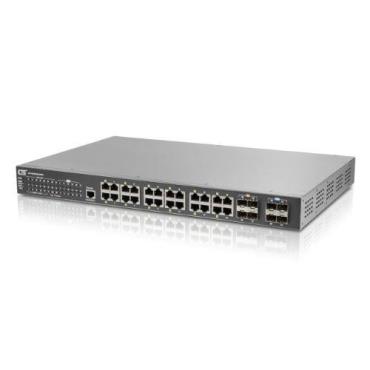

The hardened Layer 2 managed PoE switch ICS-G24044X-24PH supports up to 24 PoE+/PSE ports to meet the stringent

requirements of centralized and mission-critical applications, features 4 10G SFP+ slots and 24 Gigabit UTP ports, supports

IEEE 802.3af/IEEE 802.3at standards, each port provides up to 30 watt power output for connecting heavy industrial PoE

equipment, fanless design and isolated redundancy DC power supplies are ideal solutions for smart city, surveillance,

intelligent traffic control systems and production automation applications.

Features

▪ Maximum up to 24x IEEE 802.3af / 802.3a t PoE+ output, 30W per port , 400W PoE power budget in total

▪ Redundant dual input power 48VDC (44~57VDC)

▪ Provides 14 instances each can support μ-Ring, μ-Chain or Sub -Ring for flexible networking applications

▪ μ-Ring redundancy, recovery time <20ms in 250 de vices

▪ Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent

Clock, End to End Transparent Clock, Master, Slave mode by e ach port

▪ Supports EMS Management
