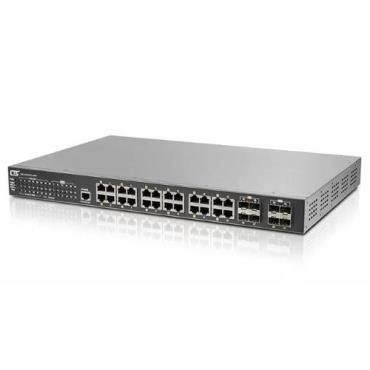

As an Industrial L3 10G Ethernet Switch for process automation and transportation automation applications, the

IXR-G24044X-24PH combines data, voice, and video transmissions with high performance and high reliability. The IXR

Series has 4x 10G SFP+ slots and 24x RJ45 GbE ports with PoE features and supports Layer 3 routing functionality to

facilitate the deployment of applications across networks, making them ideal for large-scale industrial network backbones.

Features

▪ Maximum up to 24x IEEE 802.3af / 802.3a t PoE+ output, 30W per port , 400W PoE power budget in total

▪ Redundant dual input power 48VDC (44~57VDC)

▪ Provides 14 instances each can support μ-Ring, μ-Chain or Sub -Ring for flexible networking applications

▪ μ-Ring redundancy, recovery time <20ms in 250 de vices

▪ Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent

Clock, End to End Transparent Clock, Master, Slave mode by e ach port

▪ Supports EMS Management
