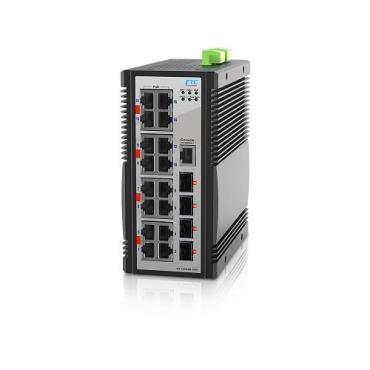

An Industrial 16-port PoE Gigabit Ethernet switch with 4-port 10 Gigabit SFP+ slot, supporting various types of 10 and 2.5 Gigabit optical small form-factor pluggable transceivers for long-distance and wide-bandwidth transmission, each PoE port support IEEE802.3af/at standard of the maximum 30W power output, each switch has a total power budget of up to 300Watts, used to connect and feed various types of Ethernet power devices, such as smoke sensors, Wi-Fi access points, femtocells, alarm centers, and IP cameras. the din-rail and fan less 20-port switch adopts an enhanced and hardened design for high surge protection, wide operating temperature and safety certified to meet critical and centralize strict requirements.

Features

▪ 48VDC (46~57VDC) redundant dual input power

▪ Provides 16 port IEEE 802.3af / 802.3at PoE+ output ,30W per port, total 300W

▪ Cable diagnostics, identifies opens/shorts distance

▪ Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device(Please see CTC μ-Ring white paper for more details and more topology application)

▪ μ-Ring for redundant cabling, recovery time<10ms in 250 devices

▪ Provides SmartConfig for quick and easy mass Configuration

▪ Supports SmartView™ for Centralized Management
