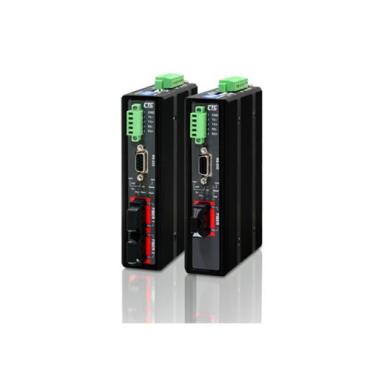

IFC Series converters are capable of selecting interface modes for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and feature a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs. IFC Series converters are also available in two operating temperature ranges, a standard -10° to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC Series are reliable and ideal solutions for keeping your industrial automation applications running smoothly and continuously even in harsh environments.

Feature

▪ Supports 1 fiber link

▪ Supports dual channel communication, including Triple-Way communication, and Two-Way communication

▪ Extend serial transmission distance up to 2km, 30km, 60km

▪ Supports point to point (Figure 6)

▪ Redundant dual power inputs (12/24/48VDC)

▪ Supports RS-232, RS-422, RS-485(2/4 wire) transmission to dual fiber connections

▪ Enhanced serial baudrate up to 1024kpbs

▪ 2.5KV isolation for serial signal

▪ Supports relay output for power or link failure warning

▪ Hardened housing with IP30 protection

▪ Fanless and DIN-Rail design for harsh industrial environment

▪ Adjustable pull high/low resistor and terminator for RS-422/485 transmission
