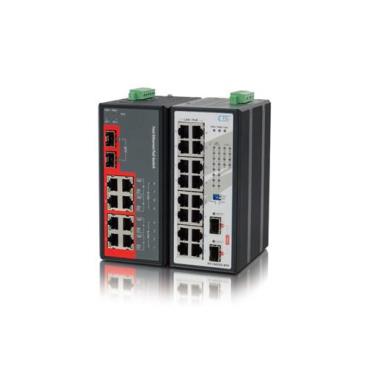

The IFS-1602GS-8PH and IFS-802GS-8PH are 18/10 Ports unmanaged industrial grade Ethernet PoE switches with 8x 10/100Base-TX PoE+/PoE that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, security automation applications, IP Surveillance, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10 to 60°C) and wide operating temperature range models (-40 to 75°C) fulfill the special needs of industrial automation applications.

Features

▪ Provides 8-port IEEE 802.3at/af PoE output (30W/Per Port )

▪ Maximum PoE output power budget 240W

▪ 48VDC (44~57VDC) redundant dual input power

▪ Supports power failure alarm message by relay

▪ Supports flow control

▪ Provides broadcast storm protection (IFS-1602GS-8PH)

▪ DIN Rail mounting or wall mounting
